Removing Side Camera

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -1-  .

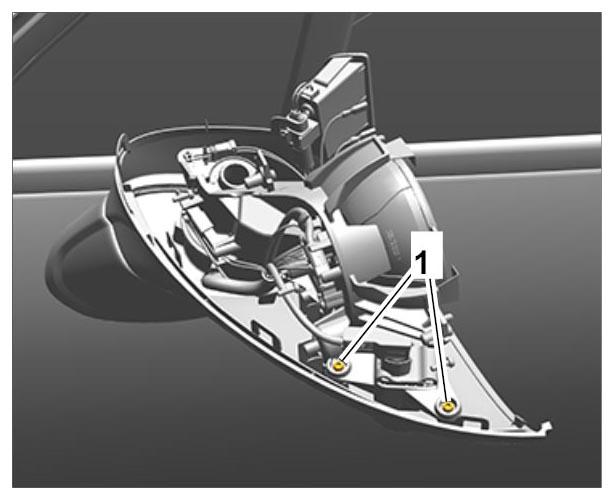

    Fig 1: Identifying Side Camera Screws
    G09941792Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove camera -1-  with holder -2-  .
  3. Release electric plug connection -arrow-  and disconnect it -arrow a-  .

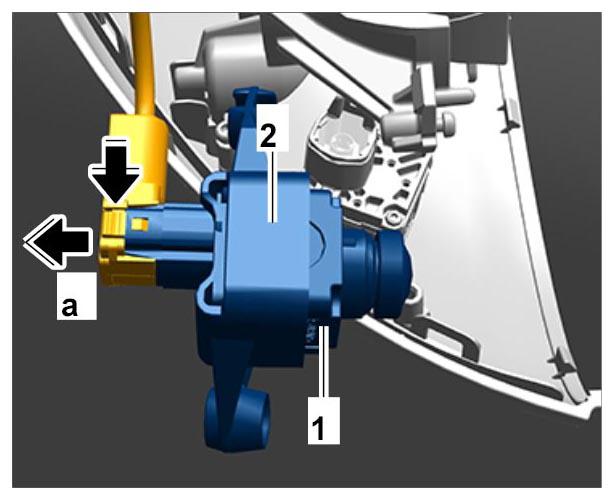

    4. Fig 2: Removing Camera With Holder
    G09941793Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Guide camera -1-  out of the holder -2-  .
