Removing Control Unit For Steering Wheel Electronics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Airbag contact unit not set correctly

Malfunction in driver's airbag unit

→ When removing and installing the steering column switch, turn the steering wheel so that the wheels are in straight-ahead position. This ensures that the airbag contact unit is locked in the central position.

→ Do not trap the cable of the airbag contact unit.

→ Check that the cable is routed correctly.

Release electric plug connections -1- and disconnect them from the steering wheel electronics control unit -2- .
Unscrew fastening screw -3- .

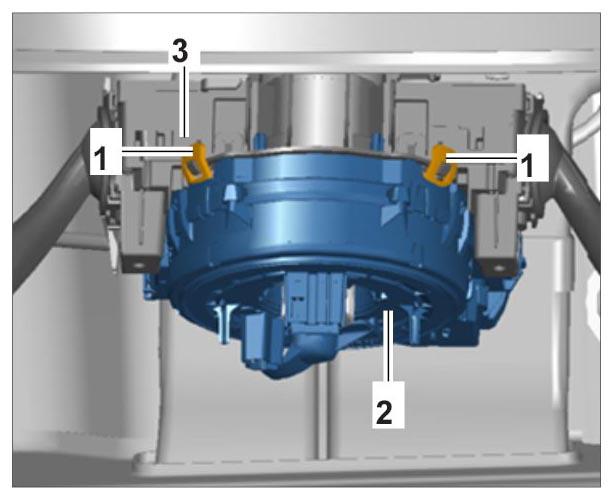

Fig 1: Identifying Steering Wheel Electronics Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully disengage locking mechanisms -1- on the steering wheel electronics control unit -2- and remove steering wheel electronics control unit from the steering-column switch -3- .

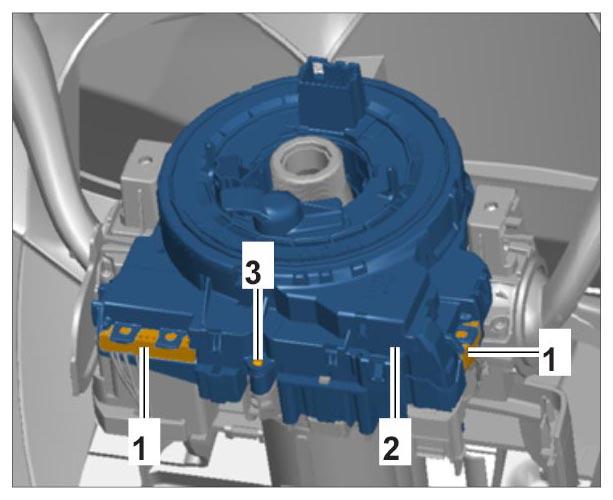

Fig 2: Identifying Steering Wheel Electronics Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
