Removing Telephone Handset And Charging Tray

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift off handset.
    Fig 1: Removing Handset
    G09941784Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully remove dummy plug -A-  .

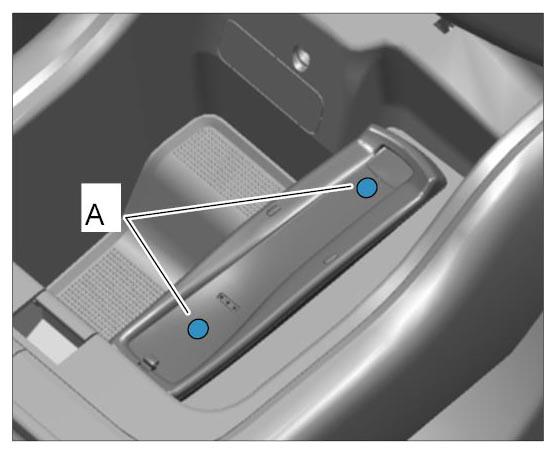

    Fig 2: Identifying Charging Tray Dummy Plug
    G09941785Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Loosen fastening screws -A-  .

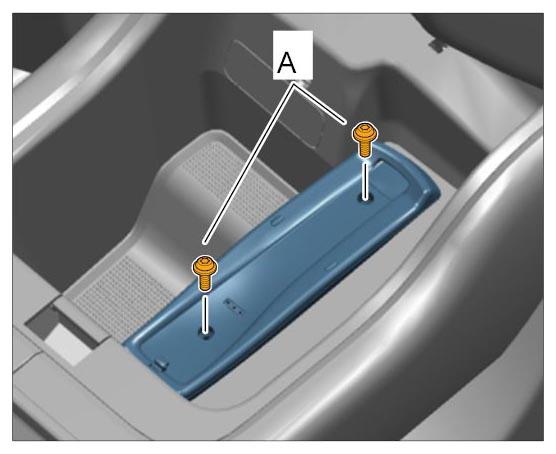

    Fig 3: Identifying Charging Tray Screws
    G09941786Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Lift charging tray, turn and carefully disconnect plug connection -A-  .

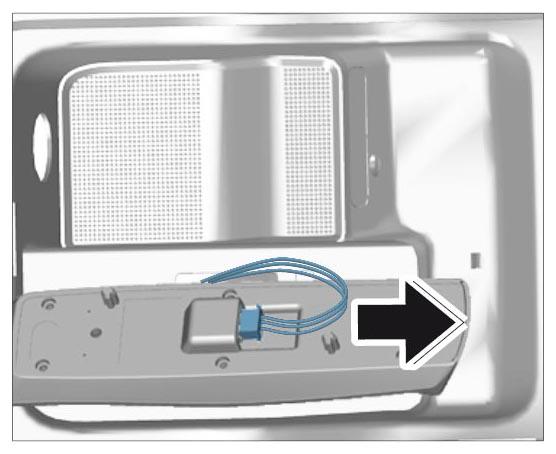

    Fig 4: Disconnecting Plug Connection
    G09941787Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove charging tray.
