Calibrating the reversing camera balances the tires, chassis tolerances and installation tolerances of the camera.

• The calibration unit VAS 6350 WE 1368 and a spacing laser VAS 6350/2 WE 1369 are needed for calibration  .
• During calibration, the control unit for the reversing camera calculates the vehicle-specific adjustment values (e.g. image rectification) for the camera image  .
• After the actual calibration process, which takes approx. 2 minutes, the rectified image can be seen on the vehicle display  .

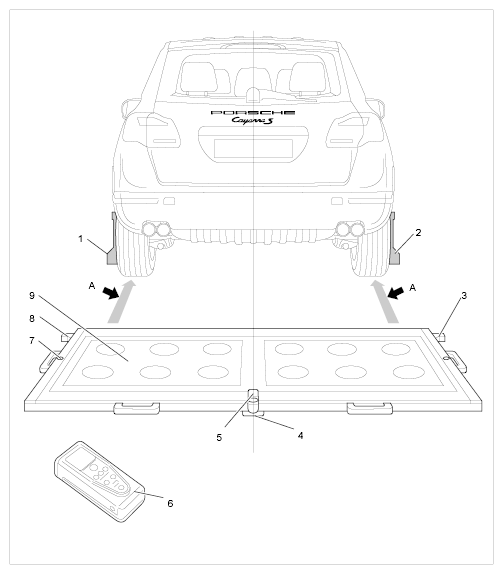

1 and 2  Wheel center support with reflectors.

3 and 8  Stop for distance meter

4  Height-adjustable calibration plate base

5  Line laser

6  Distance measuring unit

7  Spirit level for adjusting calibration plate horizontally in X and Y direction and cut-out for measuring calibration plate height

9  Calibration pattern

10  Reversing camera

A  Height of center of camera lens from floor

B  Distance between calibration plate and vehicle, equal on both sides

C  Calibration plate height

Fig 1: Overview Of Reversing Camera

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Calibration must only be performed on level ground.

On vehicles with air suspension, switch on ignition, close the doors and set the air suspension to Comfort  .

1. Park the vehicle on a level surface and set up the calibration unit VAS 6350 WE 1368  behind the vehicle in accordance with the operating instructions for VAS 6350.

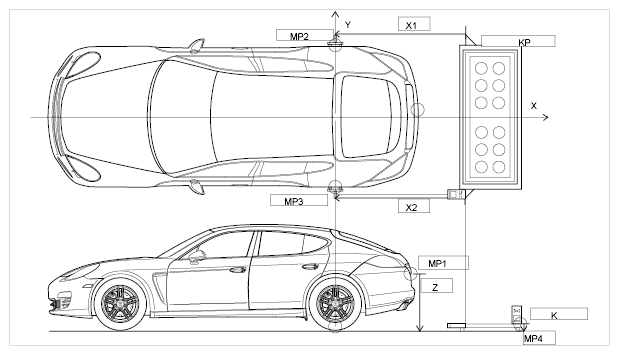

   MP 1 bis 4  - Measuring points

   X1  - Distance from calibration plate to right reflector

   X2  - Distance from calibration plate to left reflector

   Z  - Height of camera from floor

   K  - Calibration plate height

   Fig 2: Overview Of Vehicle

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

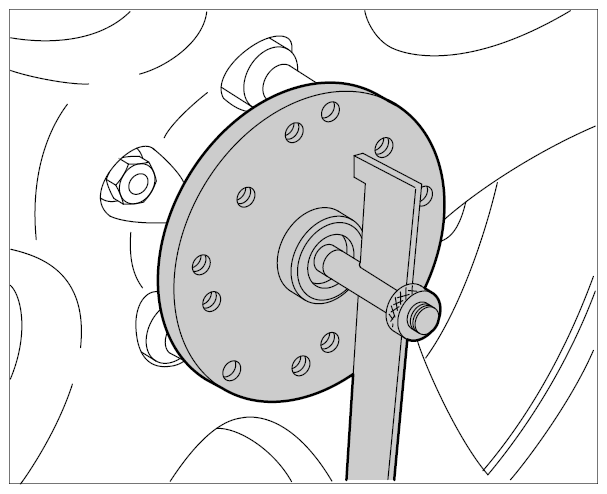

2. Fit the wheel nut supports and reflectors on the vehicle in accordance with the operating instructions for VAS 6350. The reflectors must be hanging freely.

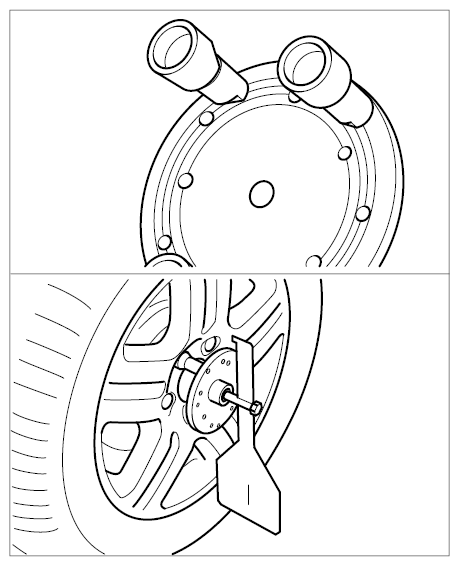

   Fig 3: Fitting Reflectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 4: Identifying VAS (6350)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Align the work surface with the middle of the vehicle, adjust the line laser to suit the calibration plate in accordance with the operating instructions for VAS 6350.
