Removing Reversing Camera

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

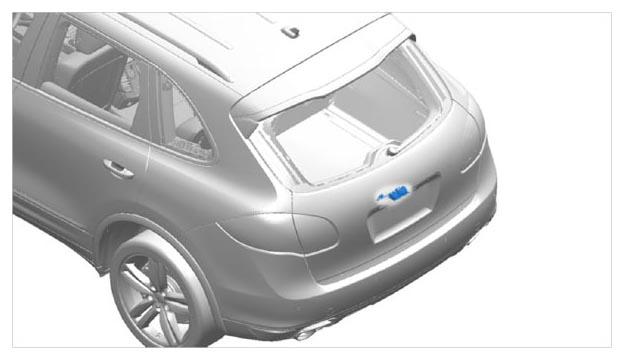

Fig 1: Identifying Reversing Camera Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

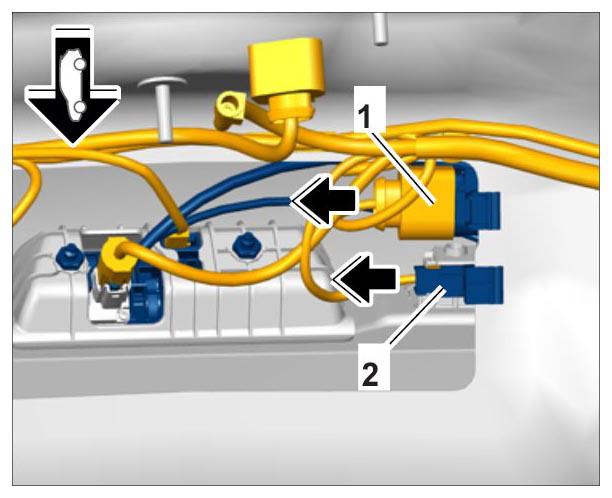

Unclip electric plug connections -1- -2- .

Fig 2: Removing Reversing Camera Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

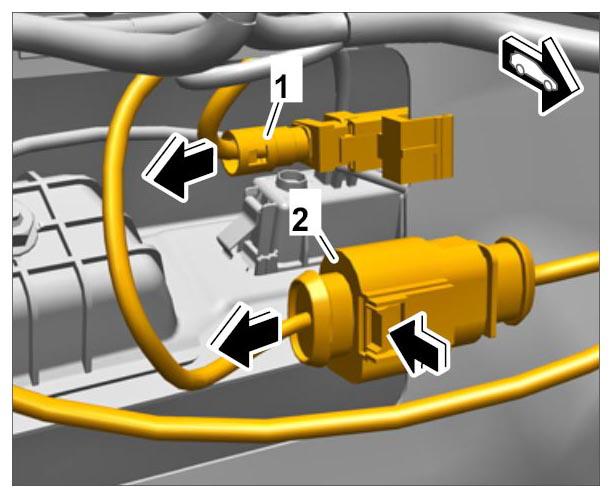

Release and disconnect electric plug connections -1 + 2- .

Fig 3: Disconnecting Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

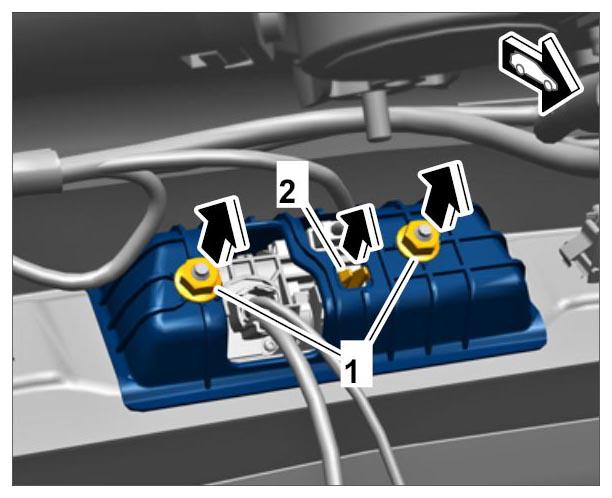

Unscrew fastening nuts -1- and remove cover plate -2- .

Fig 4: Removing Cover Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection.

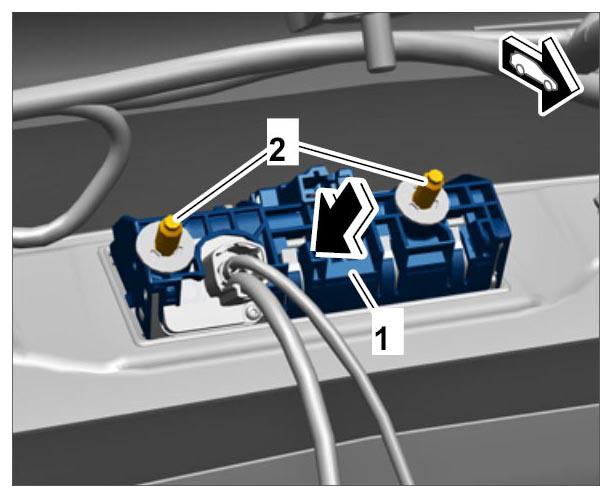

Press reversing camera -1- outwards at the pins -2- .

Fig 5: Removing Reversing Camera
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
