Removing Tweeter In Rear Door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Incorrect handling of components
  • Risk of irreparable damage to electric and electronic components
  • Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

  1. If installed:

    Remove sun blind. → REMOVING SUN BLIND ON DOOR WINDOW

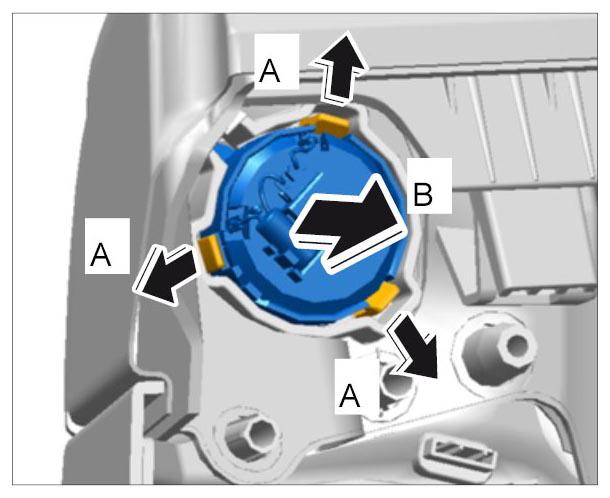

  2. Press the locks outwards -arrows A-  and remove the loudspeaker -arrow B-  .
    Fig 1: Removing Tweeter
    G09941757Courtesy of PORSCHE CARS NORTH AMERICA, INC.
