Removing Front Loudspeakers (Dashboard) At The Left And Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of components

Risk of irreparable damage to electric and electronic components
Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

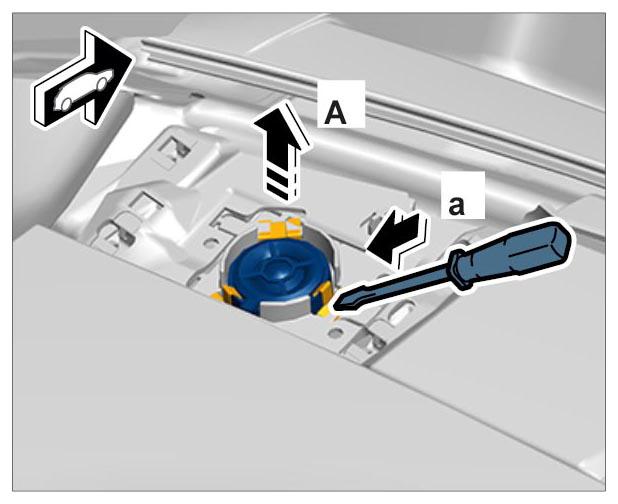

Unclip -a- and remove loudspeaker -A- .

Fig 1: Removing Loudspeaker
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

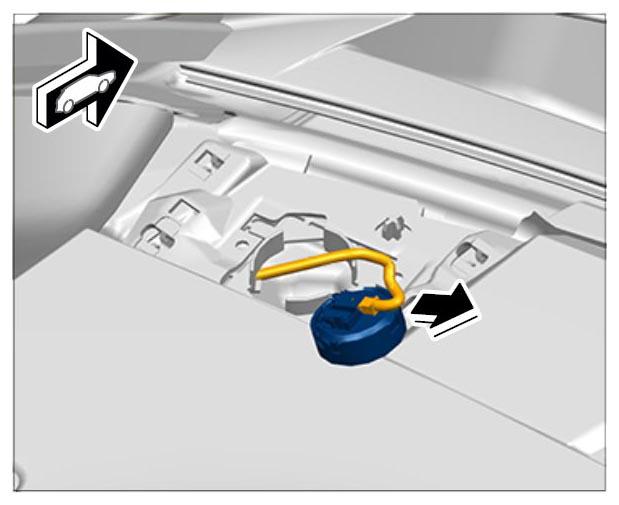

Disconnect electric plug connection -arrow- .

Fig 2: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
