Removing Front Centre Loudspeaker (Dashboard)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of components

Risk of irreparable damage to electric and electronic components
Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

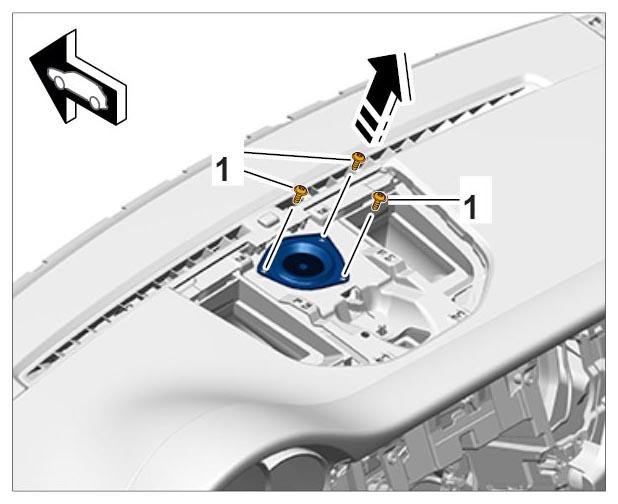

Unscrew fastening screws -1- on the loudspeaker and remove loudspeaker -arrow- .

Fig 1: Removing Loudspeakers Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

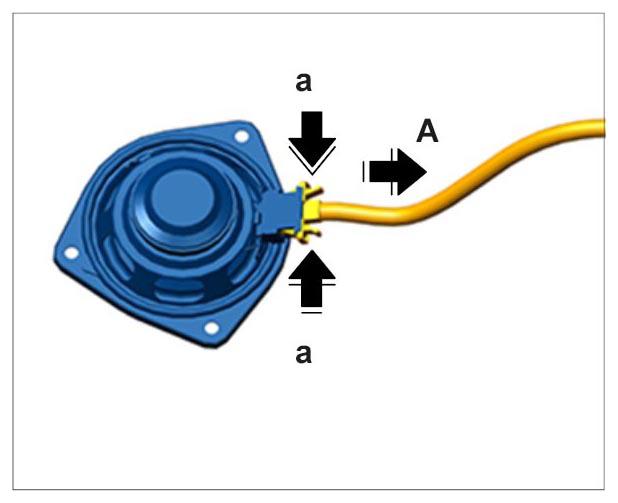

Release electric plug connection -a- and disconnect it -A- .

Fig 2: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
