Installing Front Loudspeakers (Dashboard) At The Left And Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in electric plug connection on the loudspeaker -arrow-  until it engages securely.

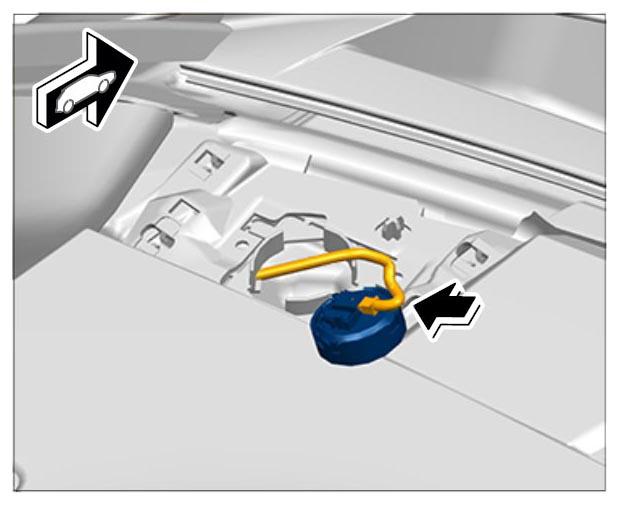

    Fig 1: Installing Front Loudspeakers Electric Plug Connection
    G09941745Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip the loudspeaker into the dashboard -arrow-  . Check that the clips are fitted securely.

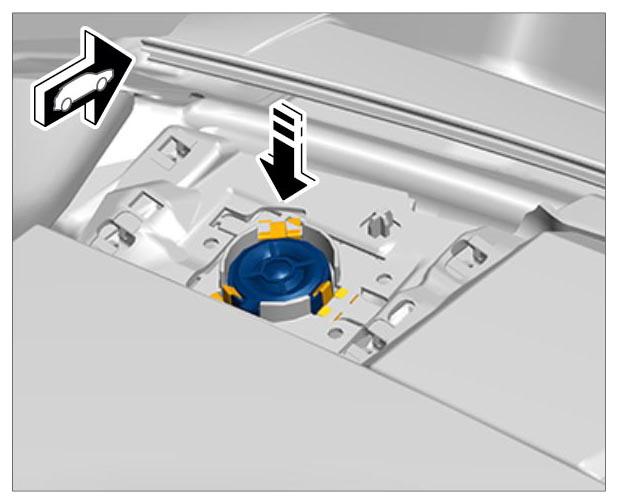

    Fig 2: Pressing Loudspeaker
    G09941746Courtesy of PORSCHE CARS NORTH AMERICA, INC.
