Installing Front Centre Loudspeaker (Dashboard)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in electric plug connection on loudspeaker -arrow-  until it engages securely.

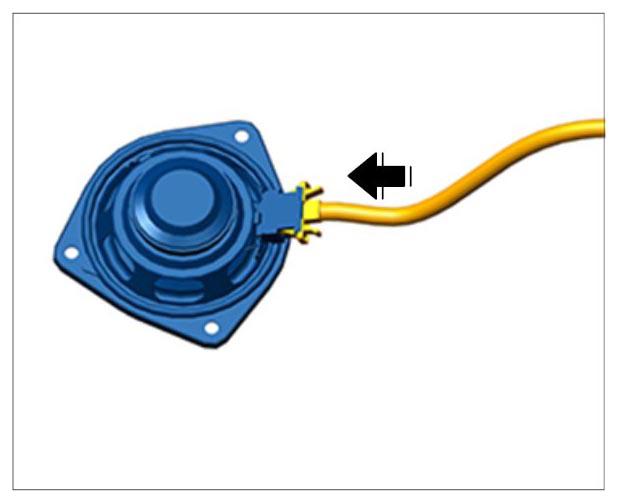

    Fig 1: Locating Electric Plug Connection
    G09941747Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position the loudspeaker on the dashboard.
  3. Tighten fastening screws -1-  .

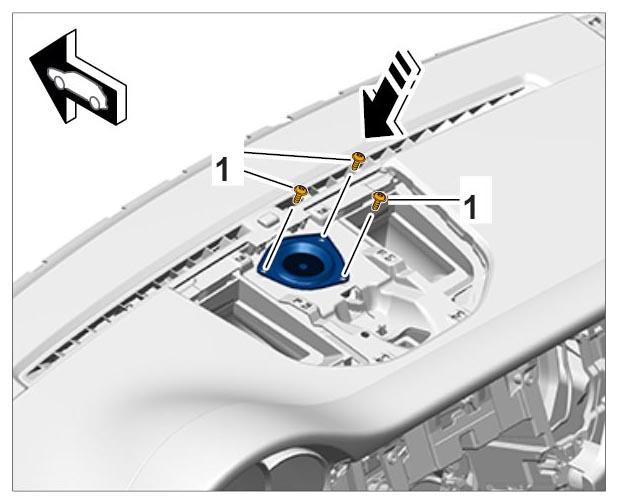

    4. Fig 2: Installing Loudspeaker
    G09941748Courtesy of PORSCHE CARS NORTH AMERICA, INC.
