Removing Subwoofer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of components

Risk of irreparable damage to electric and electronic components
Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

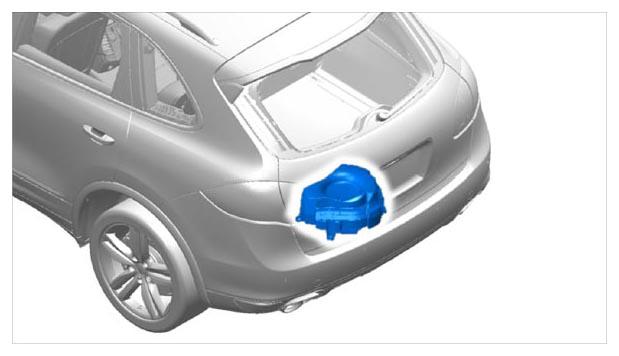

Fig 1: Identifying Subwoofer Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open the cover in the luggage compartment floor.
Unscrew four fastening nuts -1- .

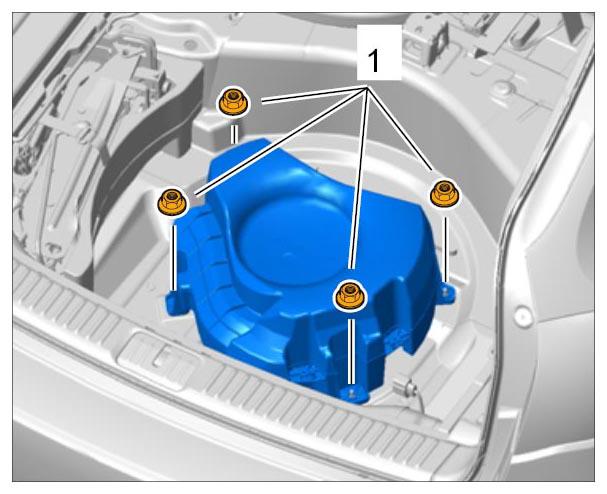

Fig 2: Identifying Subwoofer Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection -a- and pull it off -A- .

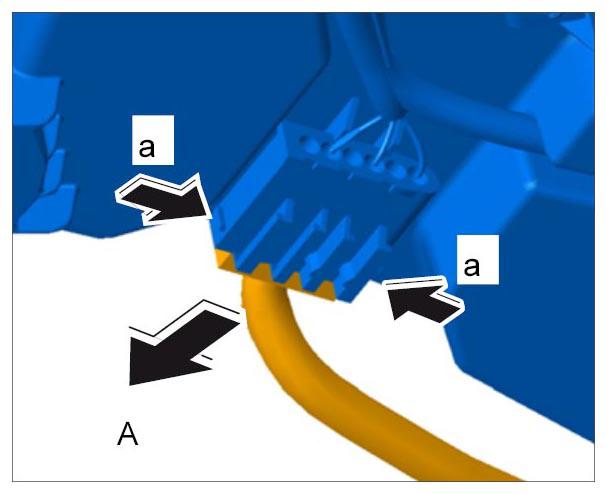

Fig 3: Removing Subwoofer Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
