Overview Of Antenna Lines

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

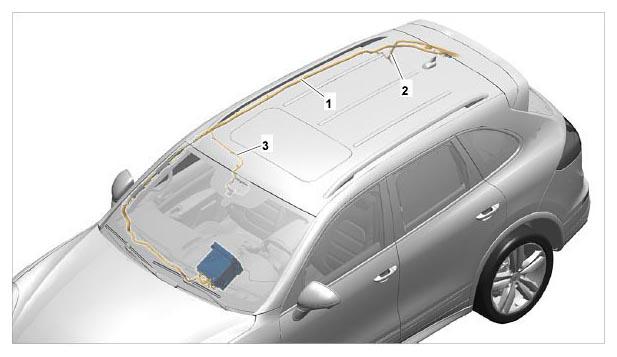

  1. PCM antenna line to connection point in roof
  2. Antenna line from connection point in roof to TV tuner
  3. PCM antenna line to GPS/GSM antenna
    4. Fig 1: Overview Of Antenna Lines
    G09941730Courtesy of PORSCHE CARS NORTH AMERICA, INC.
