Installing Antenna Line (GPS Antenna For PCM)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
- The new lines will be secured to the fastening points for the old lines .
- The old wire harness remains installed in the vehicle .
- The old wire harness will only be disconnected/unplugged directly at the connected components .
Information
- When installing the wire harness, make sure the insulation of the line is not damaged .

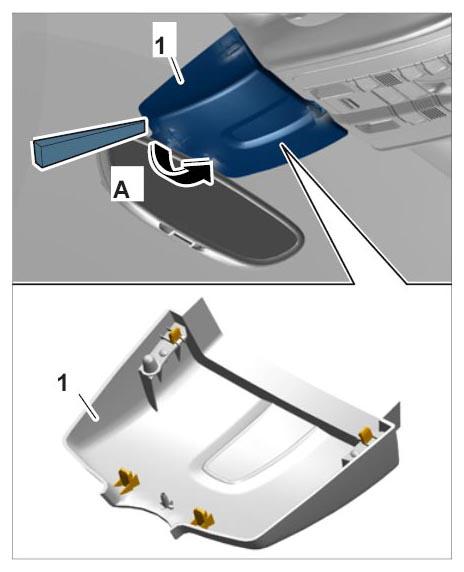

- Remove cover on front camera -1-
.
- 1.1. Carefully loosen cover on front camera -1- at the bottom, in the mirror base area, using a plastic wedge.
- 1.2. Carefully loosen cover on front camera -1- at the rear left and right sides using a plastic wedge.
- 1.3. Pull cover on front camera -1- out of the centering device and remove it -A- .

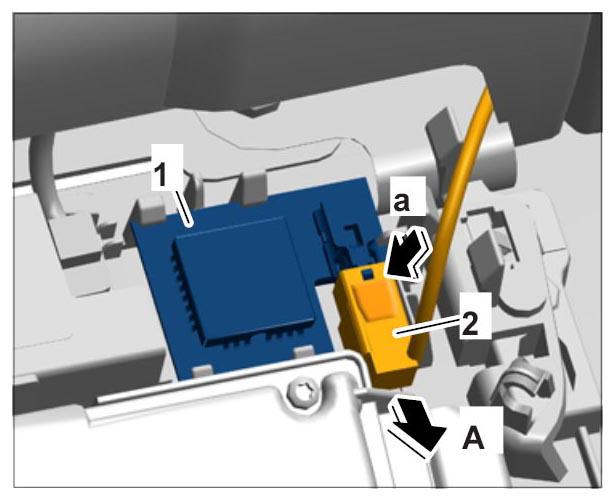

- Release electric plug connection -2- on GPS antenna -1- (-a- ) and disconnect it -A- .
- Cut off the connectors on the damaged antenna line, then insulate it and tie it to the main wire harness.
- Route the new antenna line along the main wire harness, guide it through the existing cable ducts and tie it to the main wire harness using tie-wraps.
- Plug in antenna line -2- at the GPS antenna -1- until it engages securely.
