Installing Antenna Line (Connection Point In Roof To TV Tuner)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
- The new lines will be secured to the fastening points for the old lines .
- The old wire harness remains installed in the vehicle .
- The old wire harness will only be disconnected/unplugged directly at the connected components .
Information
- When installing the wire harness, make sure the insulation of the line is not damaged .
- Disconnect antenna line at the connection point in the roof.

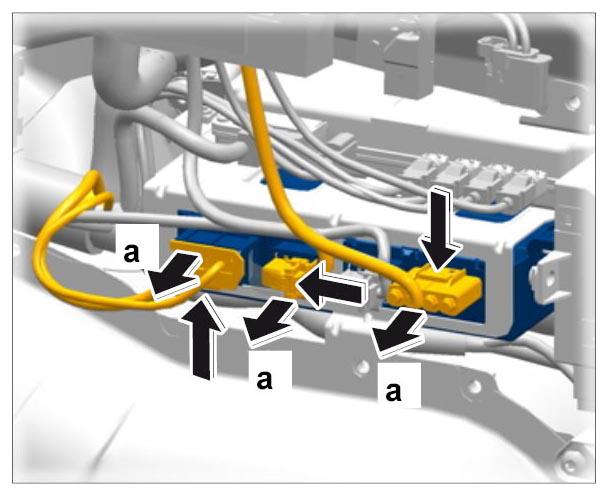

- Release antenna line (multiple plug connection on the right) from the TV tuner -arrow- and disconnect it -arrow a- .
- Cut connector off the damaged antenna line.
- Insulate antenna line and tie it to the main wire harness.
- Route new antenna line along the main wire harness, guide it through the existing cable ducts and tie it to the main wire harness using tie-wraps.
- Route new antenna line at the connection point in the roof and secure it.
- Plug in antenna line on the TV tuner and make sure that the locking mechanism engages securely.
