Replacing Multimedia Interface
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Information
- The new lines will be secured to the fastening points for the old lines .
- The old wire harness remains installed in the vehicle .
- The old wire harness will only be disconnected/unplugged directly at the connected components .
Information
- When installing the wire harness, make sure the insulation of the line is not damaged .

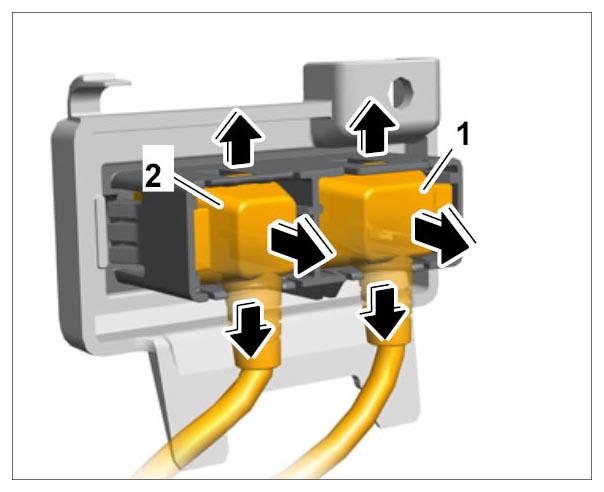

- Unclip electric plug connections for USB -1- and AUX -2- (-arrow- ) and disconnect them -arrow- .

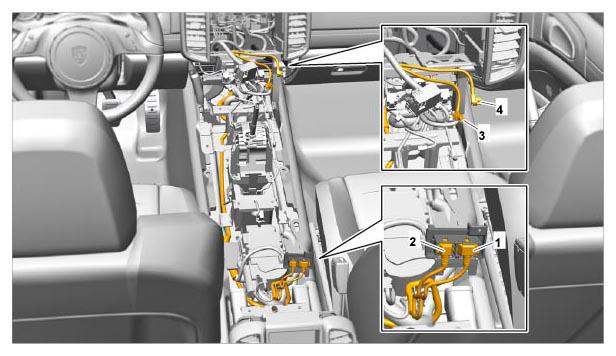

- Cut off electric plug connections -1, 2, 3, 4- , isolate them and tie them to the main wire harness.
- Route new USB and AUX lines along the main wire harness, guide them through the existing cable ducts and secure them to the main wire harness.
