Removing Multimedia Interface

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

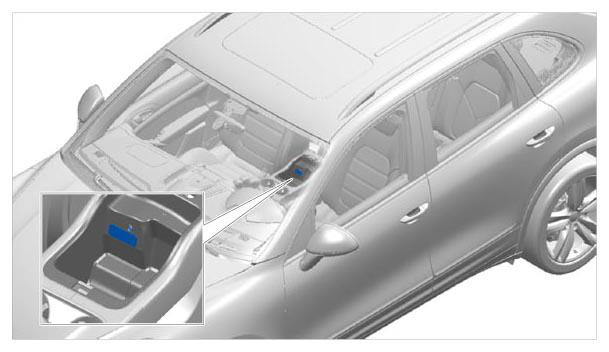

Fig 1: Overview Of Multimedia Interface
G09941713Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew screw -2-  for the multimedia interface -3-  from the oddments tray -1-  .
  2. Remove guide lugs -4-  for the multimedia interface -3-  from the oddments tray -1-  (-arrows-  ).
  3. Remove multimedia interface -3-  .

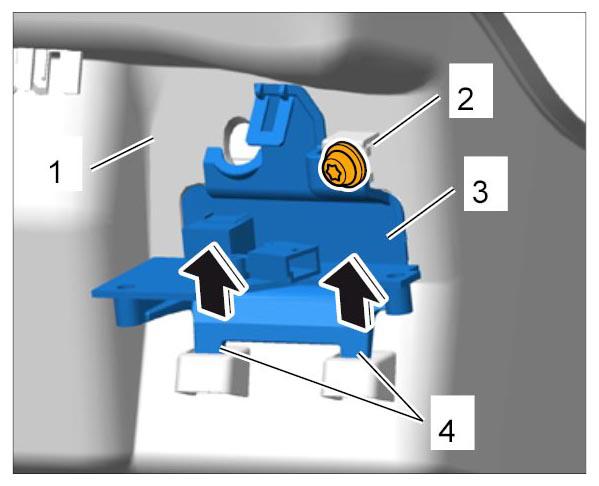

    4. Fig 2: Removing Multimedia Interface
    G09941714Courtesy of PORSCHE CARS NORTH AMERICA, INC.
