Removing TV Tuner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

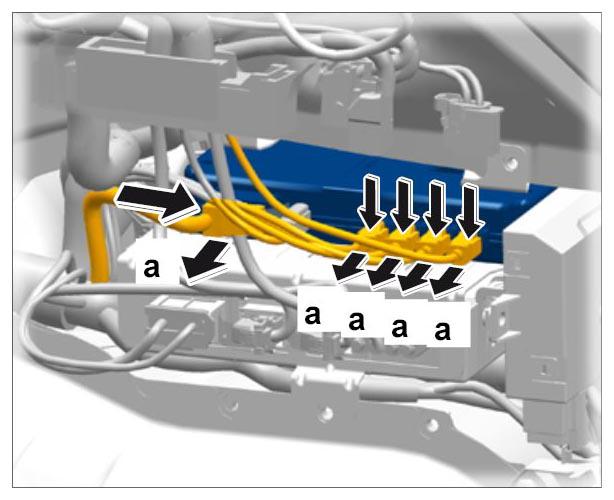

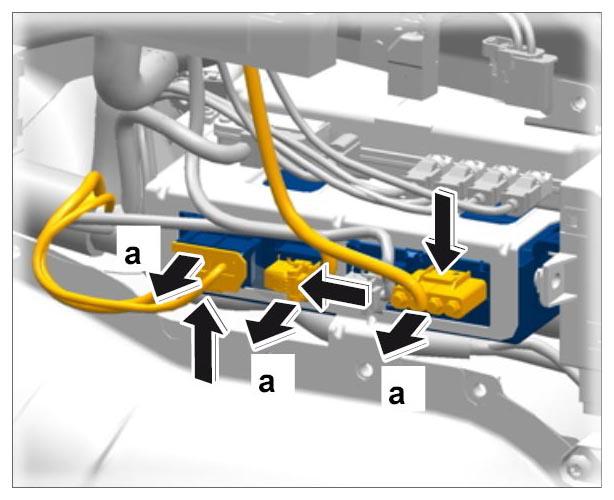

Release electric plug connections from TV tuner -arrow- and disconnect them -arrow a- .

Fig 1: Disconnecting Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connections from surround view camera control unit -arrow- and disconnect them -arrow a- .

Fig 2: Releasing Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

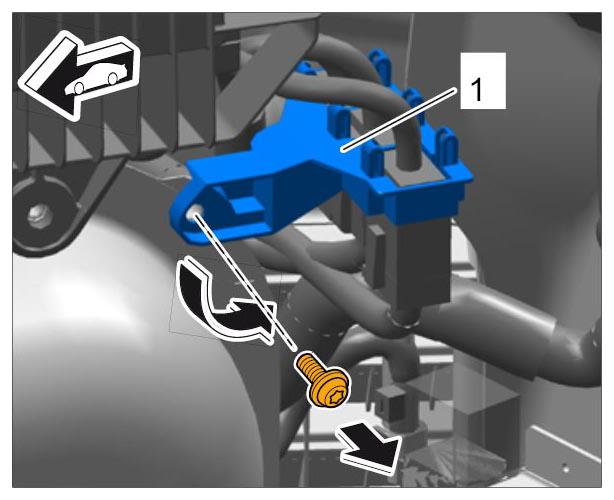

Unscrew screw on connector holder -1- and set it aside.

Fig 3: Removing Connector Holder Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

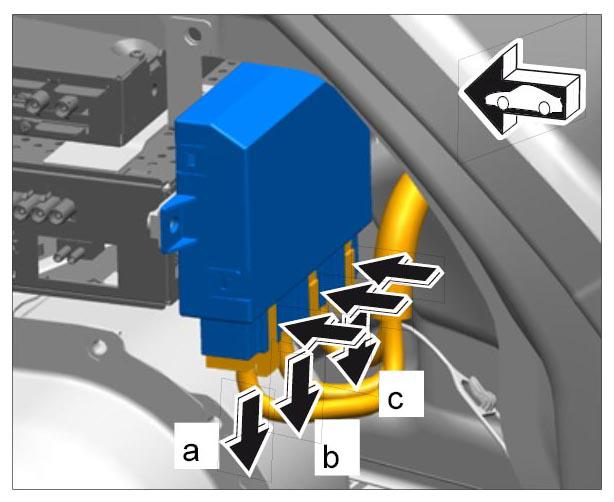

Release electric plug connections from trailer hitch control unit -arrow- and disconnect them -arrows A, B, C- .

Fig 4: Removing Trailer Hitch Control Unit Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew screws -2- on the loudspeaker booster -1- .

Fig 5: Removing Loudspeaker Booster Holder Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

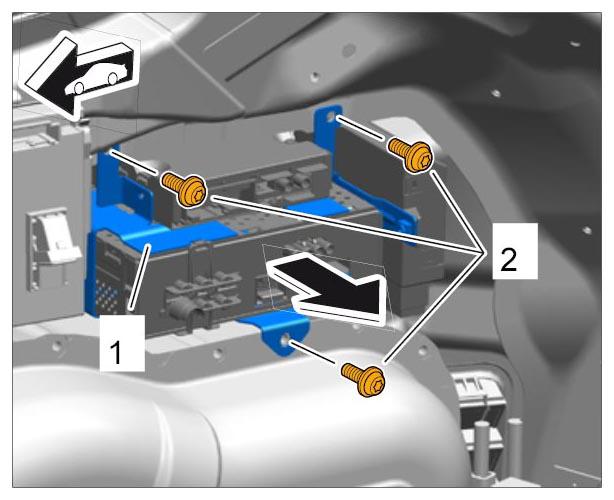

Remove loudspeaker booster holder -1- (-arrows- ).
Unscrew screws -2- from holder -1- .

Fig 6: Removing TV Tuner Holder Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove holder -1- with TV tuner, surround view camera control unit and trailer hitch control unit -arrow- .

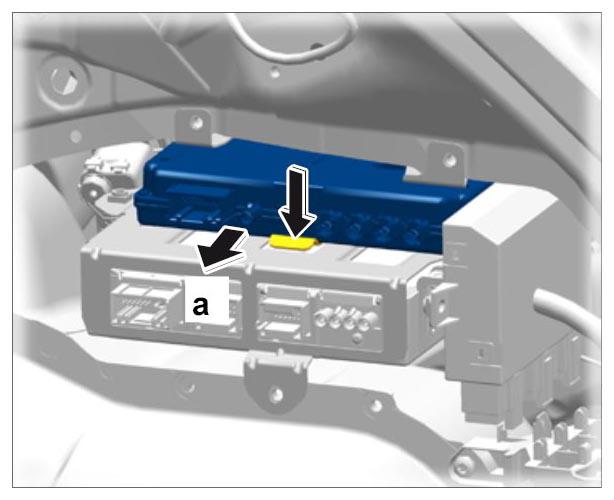

Release retaining lug -arrow- and pull surround view camera control unit out of the holder -arrow a- .

Fig 7: Pulling Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

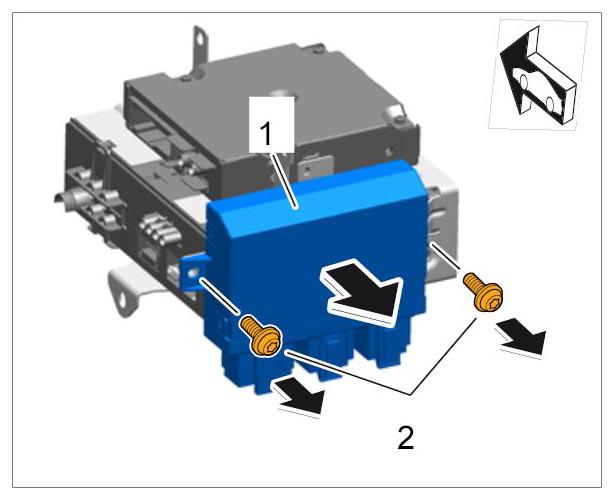

Unscrew screws -2- on trailer hitch control unit -1- .

Fig 8: Removing Trailer Hitch Control Unit Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove trailer hitch control unit -1- (-arrows- ).

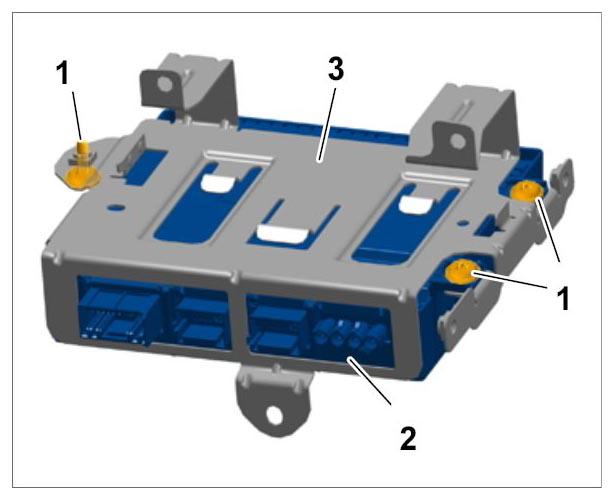

Unscrew screws -1- .

Fig 9: Identifying Trailer Hitch Control Unit Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove TV tuner -2- from the holder -3- .
