Removing GPS Antenna

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

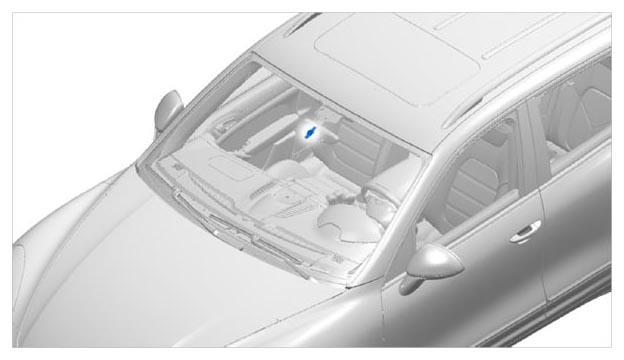

Fig 1: Identifying GPS Antenna Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

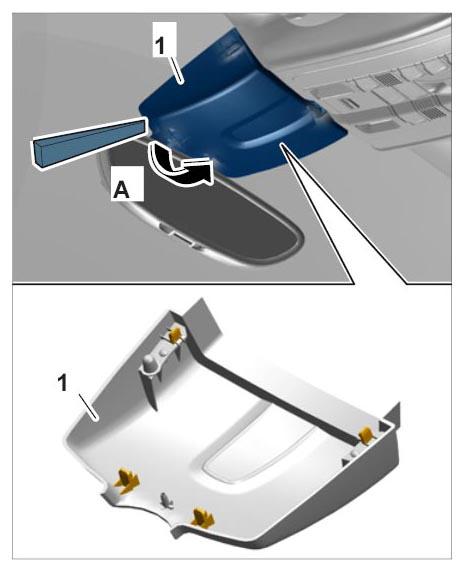

Remove cover on front camera -1- .
1. 1.1. Carefully loosen cover on front camera -1- at the bottom, in the mirror base area, using a plastic wedge.
2. 1.2. Carefully loosen cover on front camera -1- at the rear left and right sides using a plastic wedge.
3. 1.3. Pull cover on front camera -1- out of the centering device and remove it -A- .

  Fig 2: Removing Front Camera Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

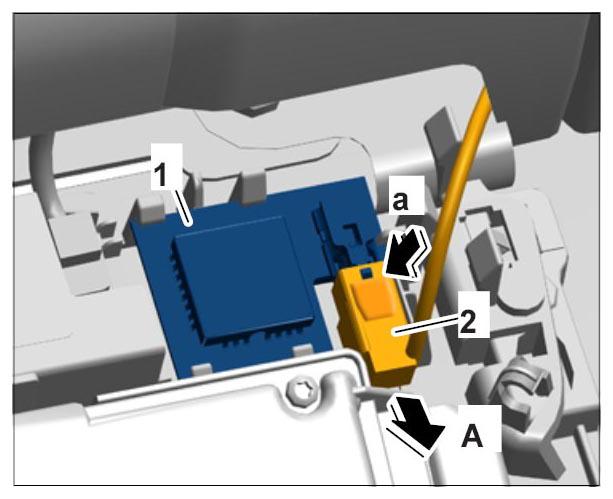

Unclip GPS antenna -1- , release electric plug connection -2- (-a- ) and disconnect it -A- .

Fig 3: Removing GPS Antenna
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
