Removing PCM 3.1 Display And Operator Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

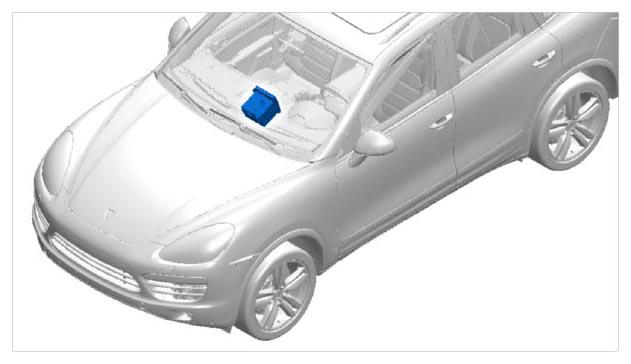

Fig 1: Identifying PCM Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

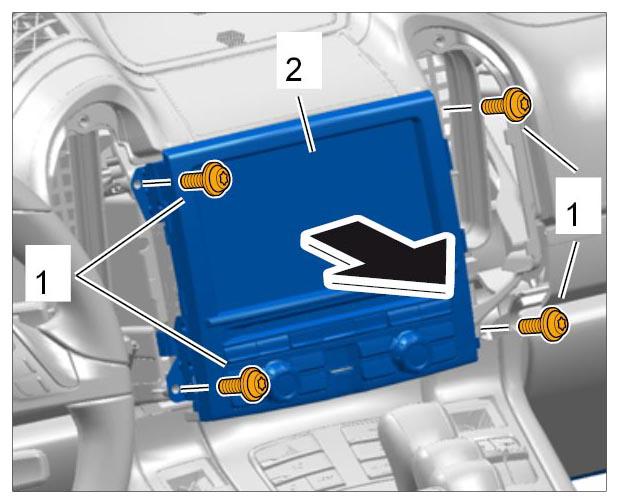

Unscrew fastening screws -1- .
Remove display and operator control unit -2- (-arrow- ).

Fig 2: Removing PCM
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

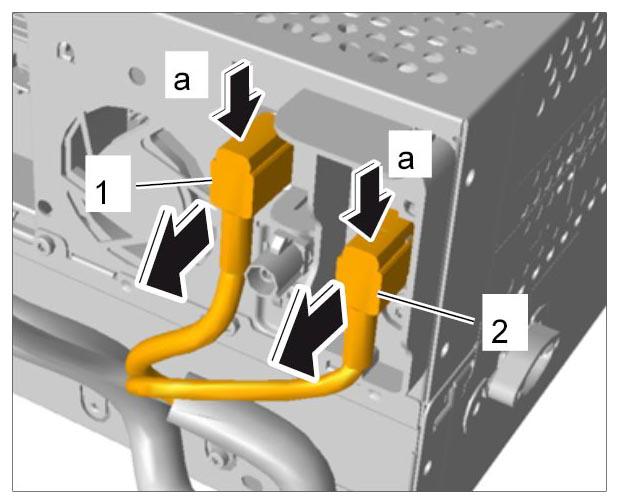

Release electric plug connections -1, 2- (-a- ) and disconnect them -arrows- .

Fig 3: Disconnecting Antenna Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

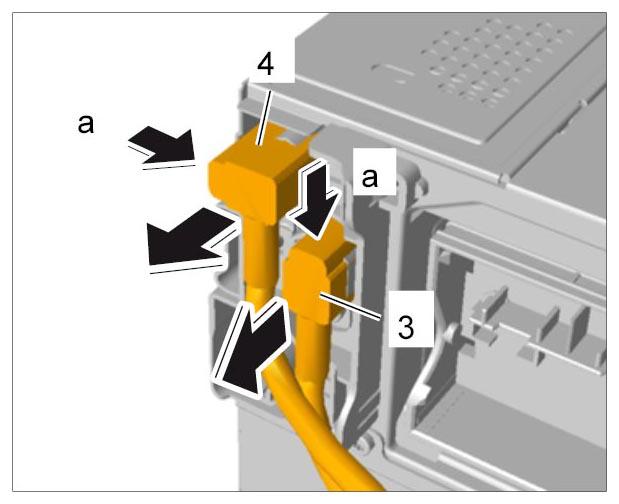

Release electric plug connections -3, 4- (-a- ) and disconnect them -arrows- .

Fig 4: Disconnecting Antenna Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

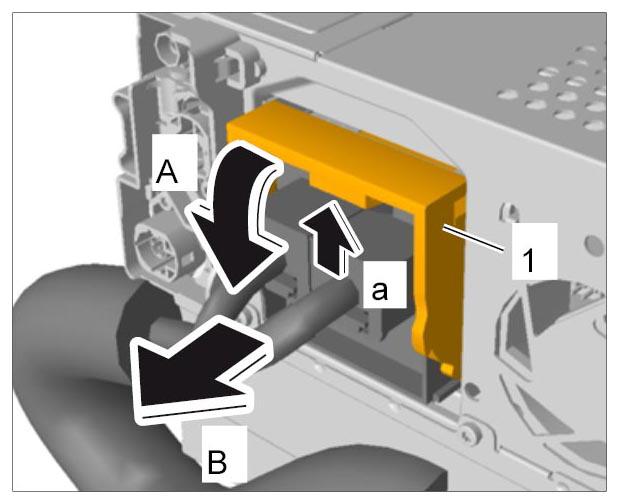

Release clip -1- on electric plug connection -a- and move it down -A- . Then disconnect electric plug connection -B- .

Fig 5: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
