Installing PCM 3.1 Display And Operator Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. The display and operator control unit -2-  is installed in reverse order to removal.
  2. Tighten fastening screws -1-  on the display and operator control unit -2-  . Tightening torque 7.5 Nm (5.5 ftlb.)

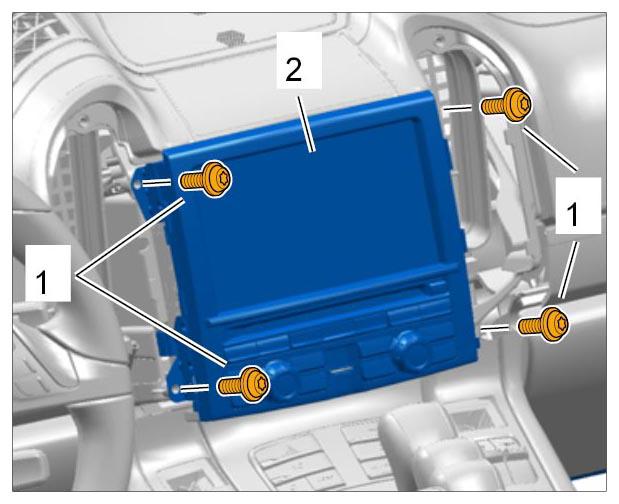

    Fig 1: Identifying PCM
    G09941694Courtesy of PORSCHE CARS NORTH AMERICA, INC.
