Removing PCM 3.1 Display And Operator Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
Never touch the electric pins and plug contacts .

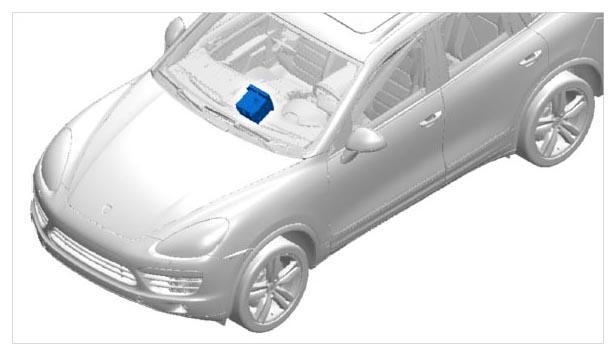

Fig 1: Identifying PCM Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

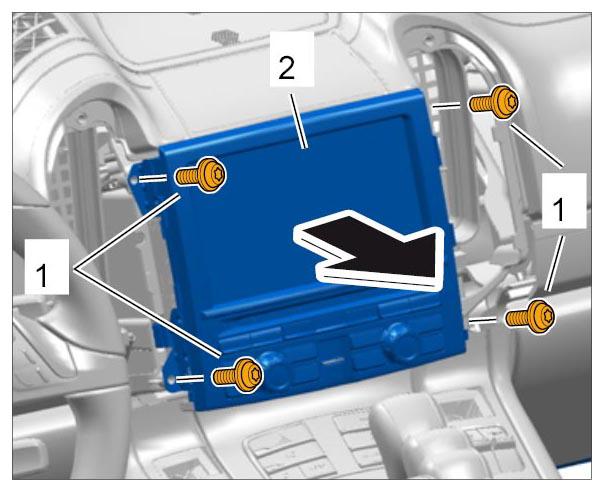

Unscrew four fastening screws -1- .
Remove display and operator control unit -2- (-A- ).

Fig 2: Removing PCM
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

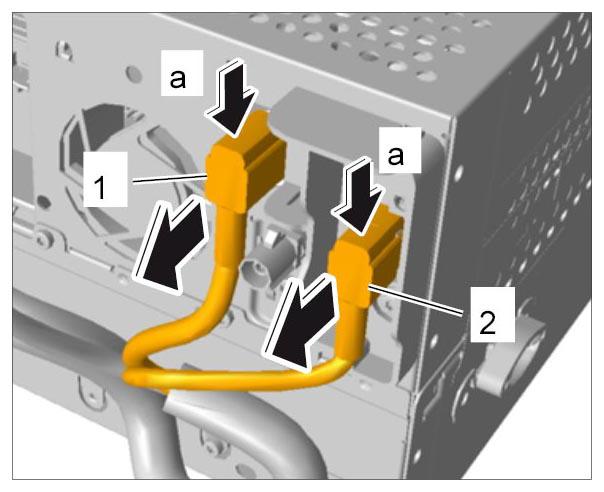

Release electric plug connections -1 + 2- (-a- ) and pull them off -arrow- .

Fig 3: Disconnecting Antenna Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

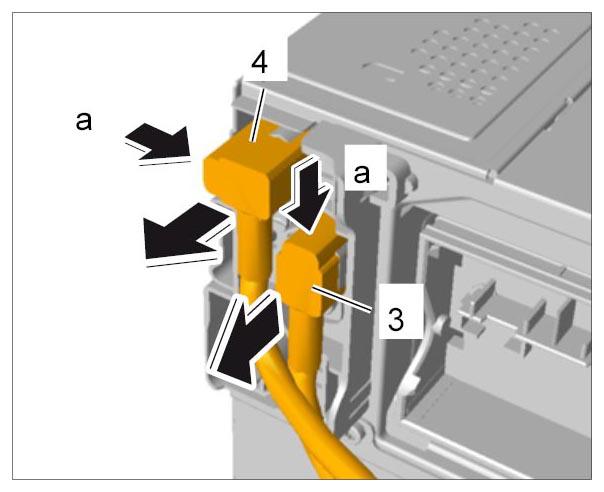

Release electric plug connections -3 + 4- (-a- ) and pull them off -A- .

Fig 4: Disconnecting Antenna Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

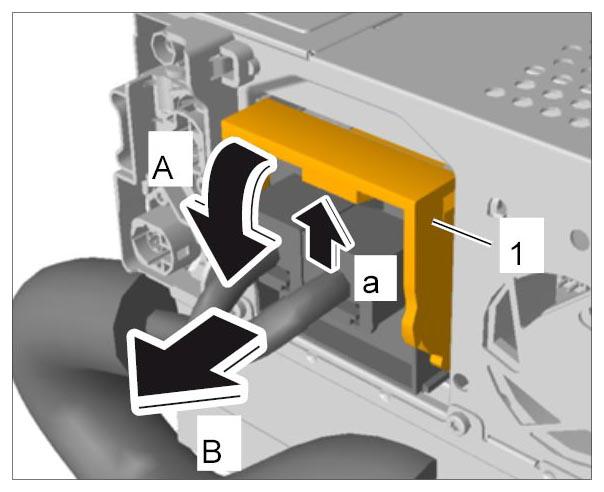

Release clip -1- on electric plug connection -a- and bend it down -A- , then pull off electric plug connection -B- .

Fig 5: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
