Removing Sun Blind On Door Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew and remove fastening screws for the sun blind -2-  .

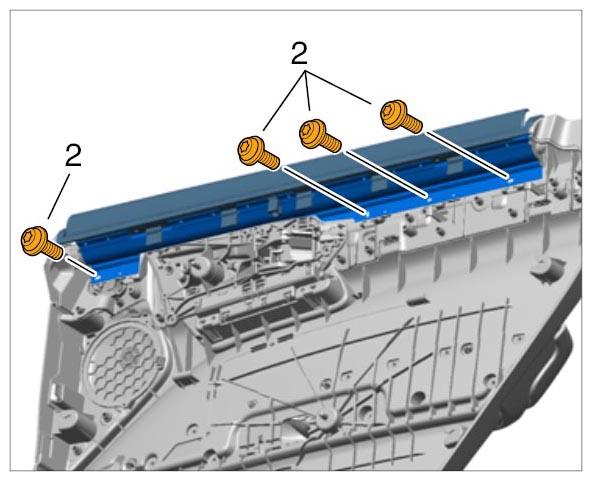

    Fig 1: Identifying Screws For Sun Blind
    G09940429Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove sun blind -1-  .

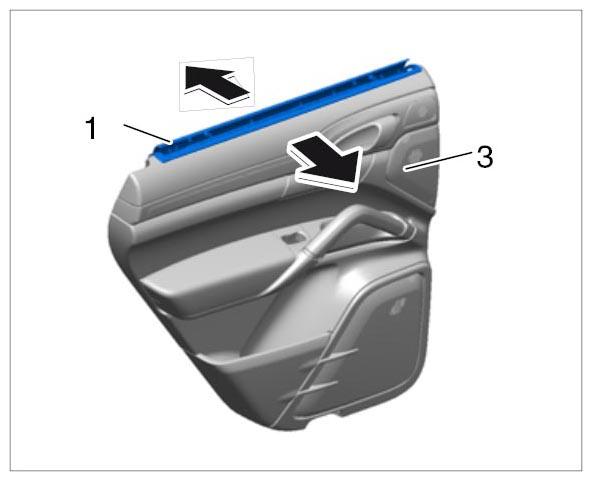

    Fig 2: Removing Sun Blind
    G09940430Courtesy of PORSCHE CARS NORTH AMERICA, INC.
