Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear door panel. → 707319 REMOVING AND INSTALLING REAR DOOR PANEL
  2. Pull the bar -2-  up out of the drive.

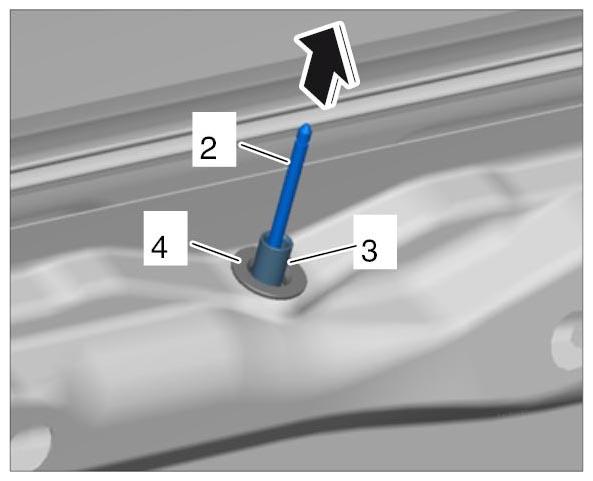

    Fig 1: Removing Bar And Sleeve
    G09940433Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull sleeve -3-  up out of the grommet -4-  .
  4. Remove rear door sub-frame. → 583019 REMOVING AND INSTALLING REAR DOOR SUB-FRAME
