Removing Cover For Rear Tray

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew and remove fastening screws -2-  from cover -1-  for rear tray.

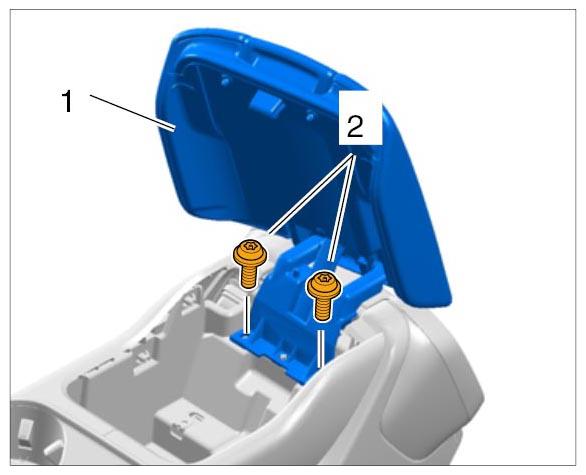

    Fig 1: Identifying Screws On Rear Cover
    G09940423Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Tilt cover -1-  backwards -A-  .

    Make sure that the bore in the base of the cover is above the front locating peg -2-  .

  3. Pull cover -1-  forward and remove it -B-  .

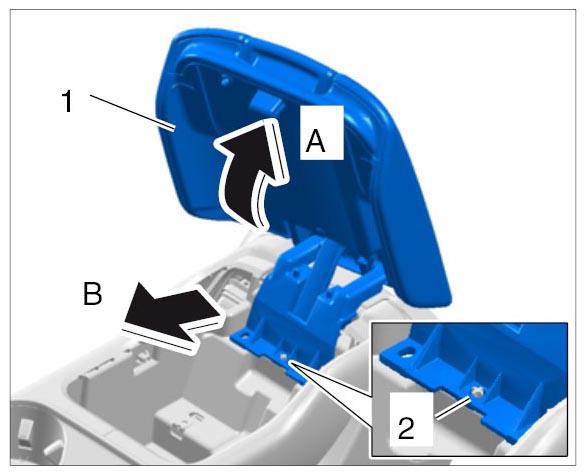

    Fig 2: Removing Cover
    G09940424Courtesy of PORSCHE CARS NORTH AMERICA, INC.
