Installing Cover For Rear Tray

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. The cover of the rear tray is installed in reverse order to removal.

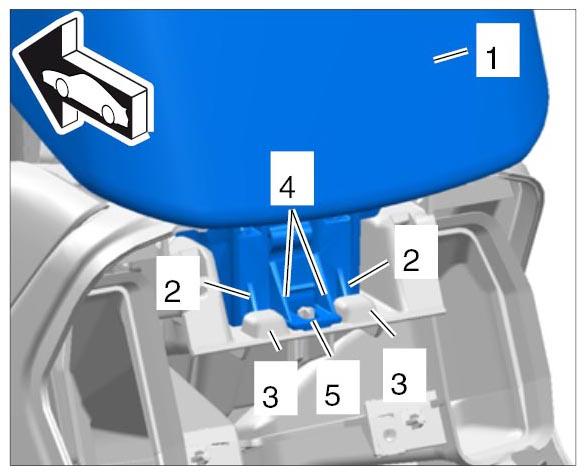

    When installing the cover -1-  , make sure that the outer guides -2-  of the rear cover fit into the cut-outs -3-  on the center console and the inner guides -4-  are around the rear locating peg -5-  .

    Fig 1: Installing Cover
    G09940425Courtesy of PORSCHE CARS NORTH AMERICA, INC.
