Removing Rear Grab Handles

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

  1. Fold out grab handle.

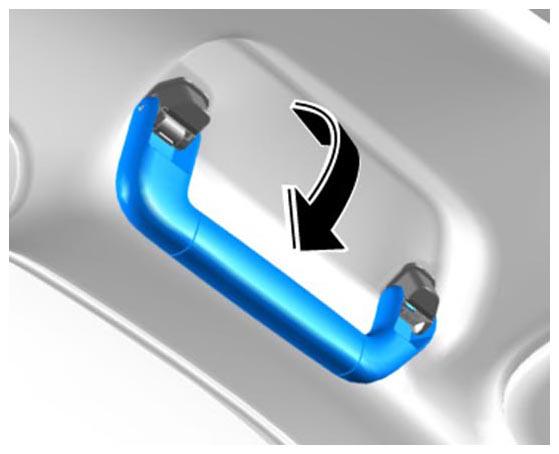

    Fig 1: Folding Out Grab Handle
    G09940415Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip cover -2-  on the grab handle -1-  using a screwdriver.

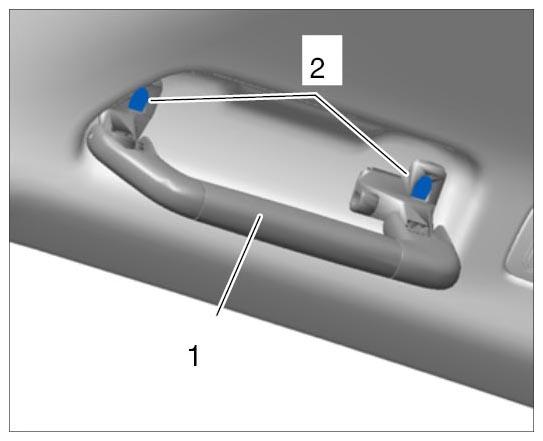

    Fig 2: Identifying Cover On Grab Handle
    G09940416Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew fastening screws -3-  .

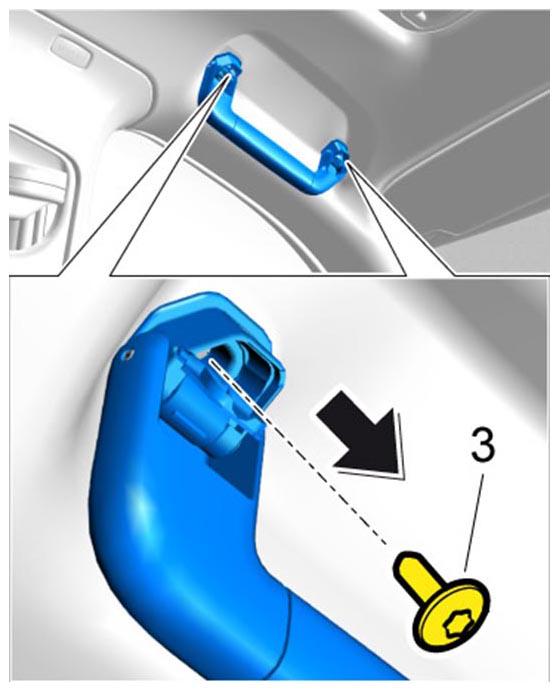

    Fig 3: Detaching Grab Handle
    G09940417Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove grab handle -1-  .

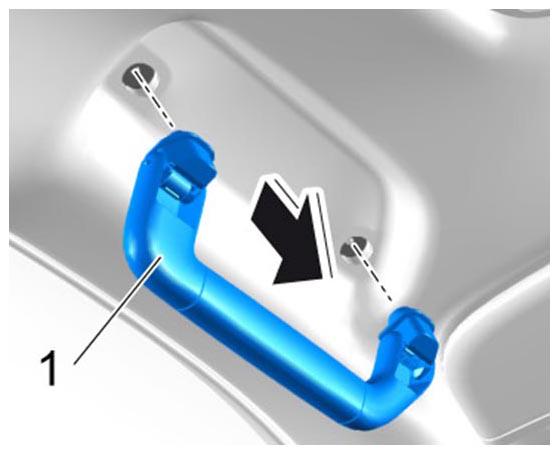

    Fig 4: Removing Grab Handle
    G09940418Courtesy of PORSCHE CARS NORTH AMERICA, INC.
