Removing Front Grab Handles

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

  1. Fold out grab handle.

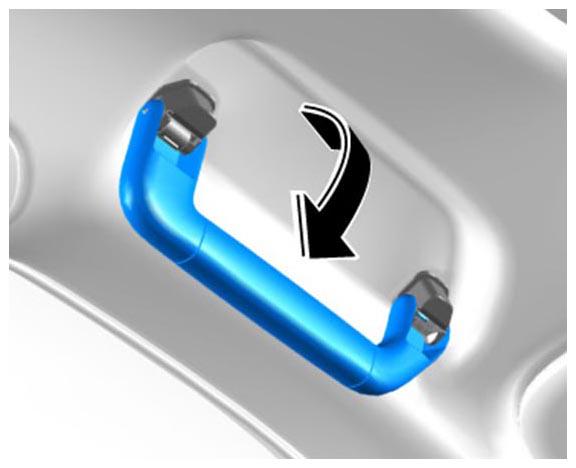

    Fig 1: Pulling Out Grab Handle
    G09940406Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Open covers -2-  on the grab handle -1-  .

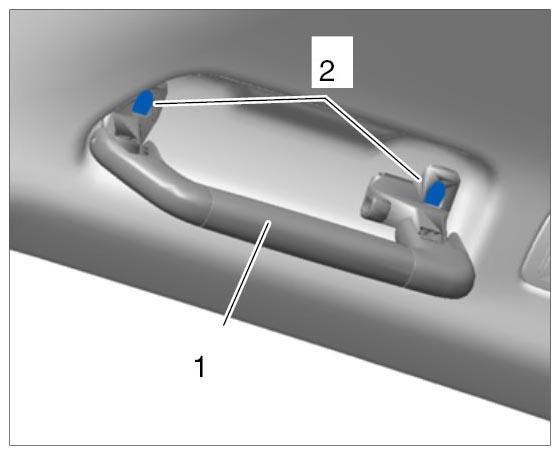

    Fig 2: Identifying Covers And Grab Handle
    G09940407Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew fastening screws -3-  .

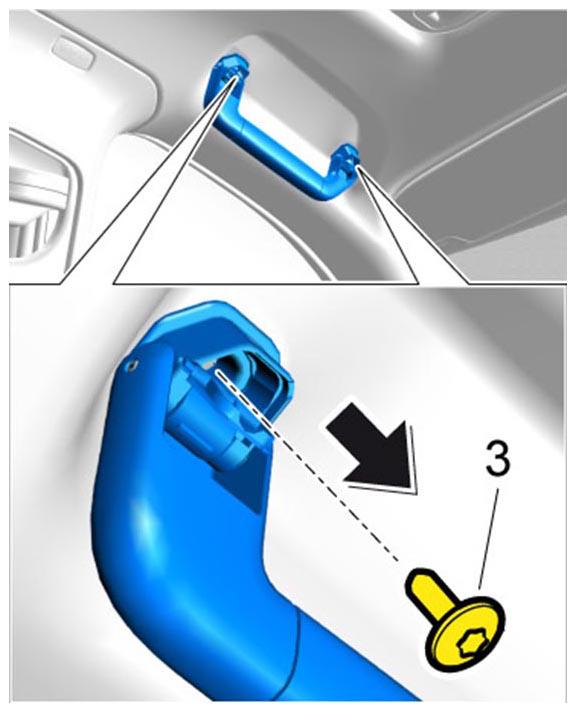

    Fig 3: Detaching Grab Handle
    G09940408Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove grab handle -1-  .

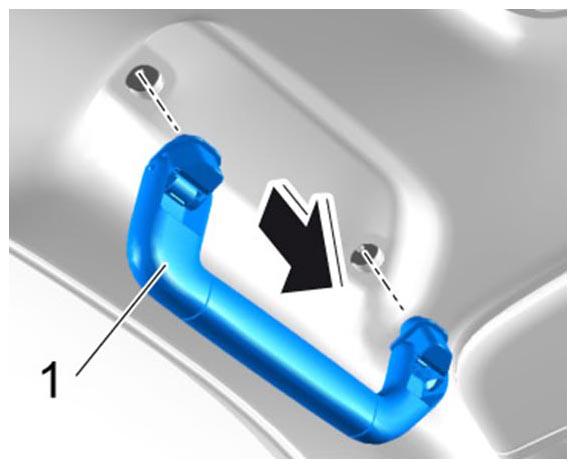

    Fig 4: Removing Grab Handle
    G09940409Courtesy of PORSCHE CARS NORTH AMERICA, INC.
