Removing Cupholder: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

Remove rubber mat -2- from cupholder -1- (-A- ).
Lever out using a suitable tool if necessary.

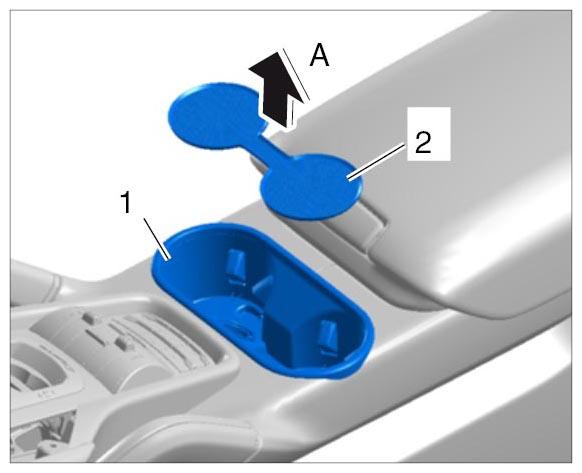

Fig 1: Removing Rubber Mat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew and remove screws -3- for the cupholder -1- .

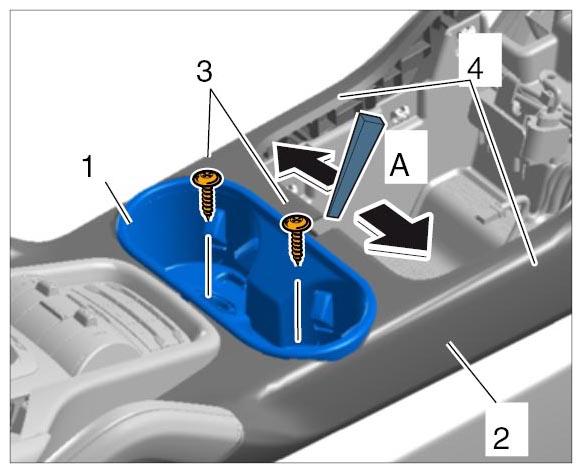

Fig 2: Removing Cupholder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip side trim panels -4- on the center console -2- from the rear as far as the cupholder -1- using a suitable tool -A- .
Pull cupholder -1- out of the center console -2- .

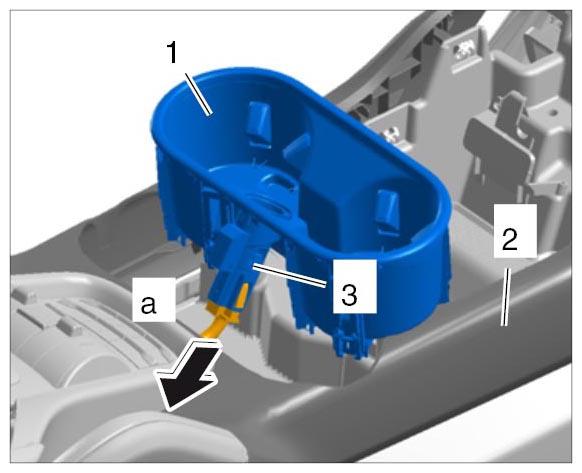

Fig 3: Disconnecting Plug Connection For Cigarette Lighter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection -3- for the cigarette lighter -a- and disconnect it -arrow- .
Remove cupholder.
