Disassembling Sun Visor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
These must be carried out as a mirror image of the steps shown for the front and rear.

Fold sun visor down.

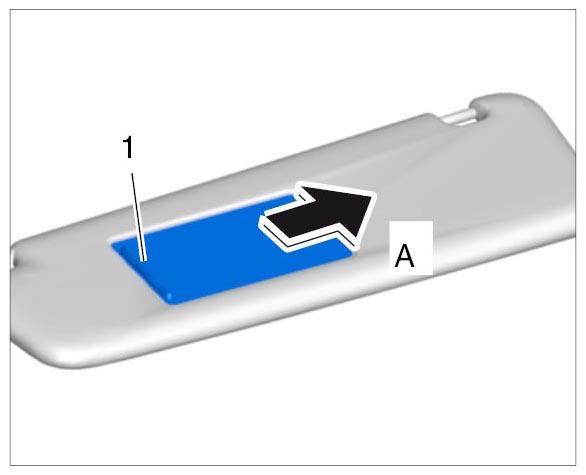

Open cover on mirror -1- fully -A- .

Fig 1: Opening Cover On Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

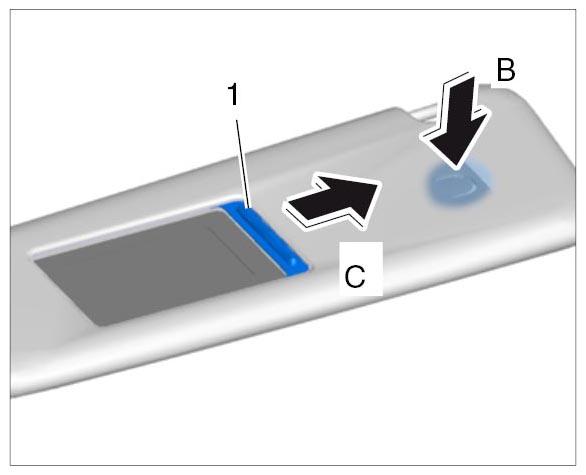

Press into the small indent on the mounting frame -B- and open the cover -1- approx. 5 mm further -C- .

Fig 2: Opening Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert a screwdriver between the mirror frame -2- and cover on mirror -1- and unclip mirror frame and mirror.

Fig 3: Removing Mirror Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

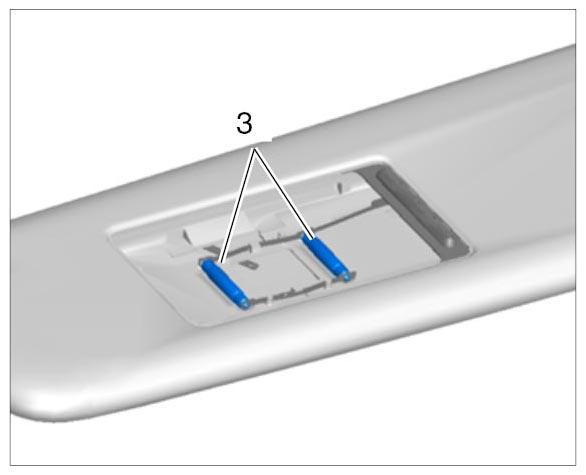

Remove light bulb -3- .

Fig 4: Identifying Light Bulb
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
