Removing Sun Visor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Disengage adjustable part of the sun visor from the mounting saddle and swivel towards the roof frame.
Loosen mounting saddle.
1. 2.1. Unclip cap -2- on the mounting saddle -3- using a screwdriver and open it -B- .
2. 2.2. Unscrew fastening screw -4- .

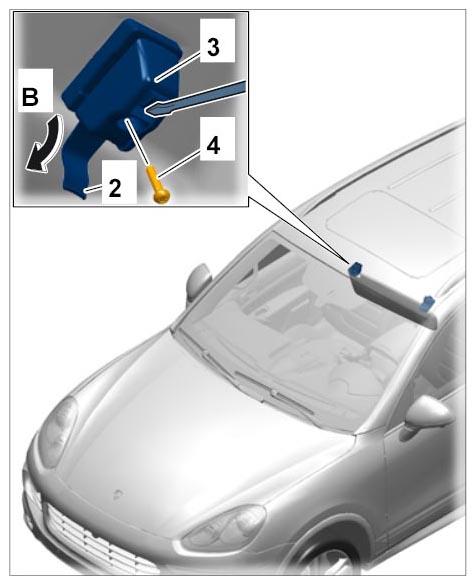

  Fig 1: Loosening Mounting Saddle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove mounting saddle.
1. 3.1. Fold rear sun visor -5- down.

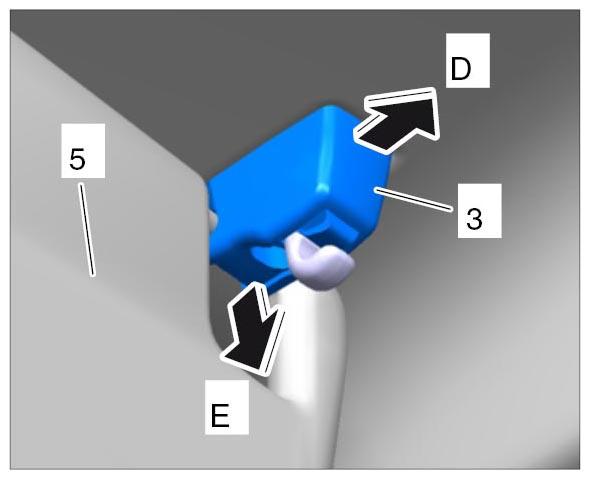

  Fig 2: Removing Mounting Saddle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Pull mounting saddle -3- back -D- and unclip it -E- .
3. 3.3. Remove latch -6- from the mounting saddle -3- (-F- ).

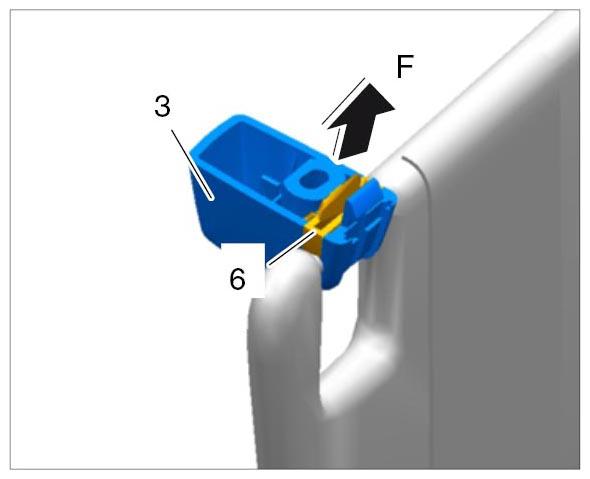

  Fig 3: Removing Latch From Mounting Saddle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Swivel locking hook out of the headliner -7- (-G- ).

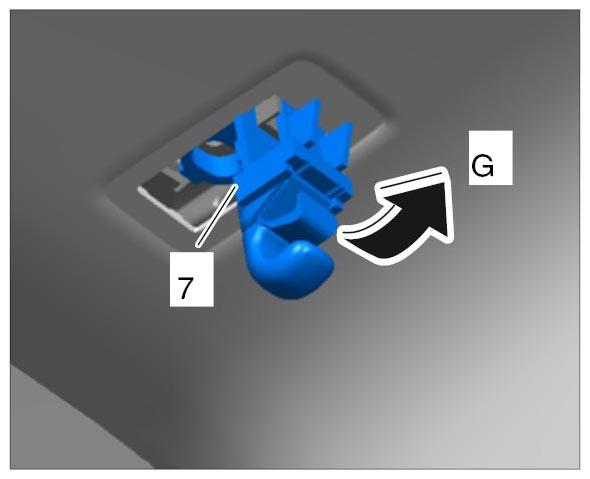

  Fig 4: Removing Lock Hook
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove pivot bearing.
1. 4.1. Carefully unclip cover on pivot bearing -1- at the rear with a screwdriver -A- .

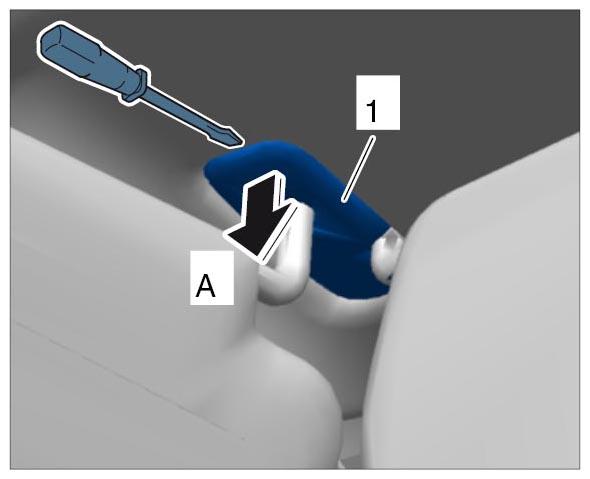

  Fig 5: Removing Cover For Pivot Bearing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

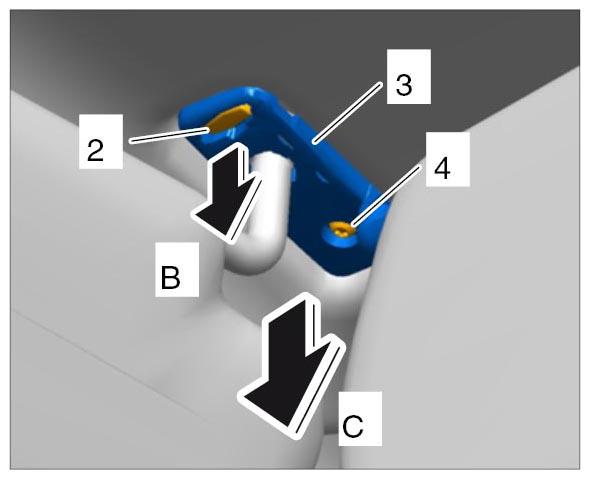

2. 4.2. Loosen expanding clip -2- for securing the pivot bearing -3- using a screwdriver -B- .

  Fig 6: Removing Pivot Bearing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Unscrew fastening screw -4- .
4. 4.4. Remove pivot bearing -3- with sun visor in a downward direction -C- .
5. 4.5. Release electric plug connection -5- using a screwdriver -a- and disconnect it -D- .

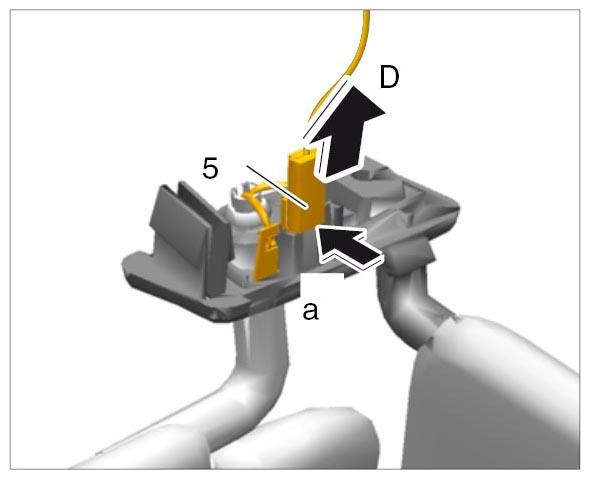

  Fig 7: Disconnecting Plug Connection For Sun Visor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
