Removing Rear Ashtray

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
Some steps must be carried out automatically.
Some of the repair illustrations show only one side of the vehicle.

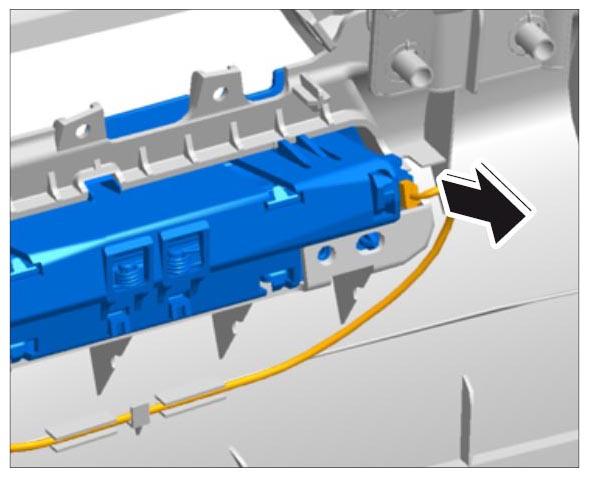

Disconnect electric plug connection from the ashtray.

Fig 1: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- .

Fig 2: Identifying Screws Of Ashtray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

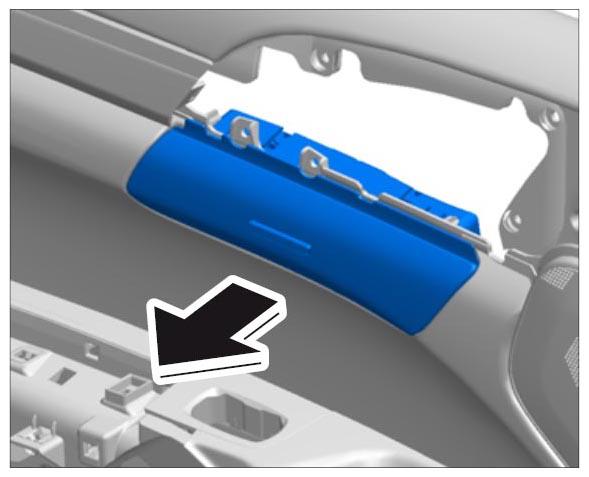

Press the ashtray out from behind and remove it by pulling it forward.

Fig 3: Removing Ashtray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
