Removing Front Ashtray

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -2-  on the ashtray -1-  .

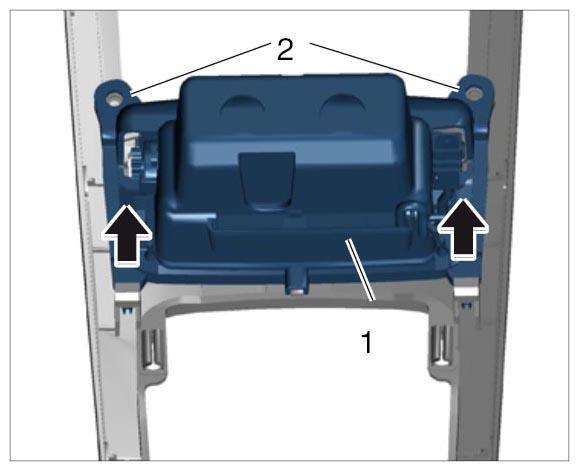

    Fig 1: Removing Ashtray
    G09940383Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip ashtray from the center console cover -arrow-  .
