Removing Upper Part Of Centre Console Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The selector knob must be in the "N" position when removing the center console cover.
Move selector lever to "N" position.

Hold lower center console cover -1- securely.
Insert tool assembly tool T10118 into the cut-out next to the selector lever -A- and lever off the cover -B- .

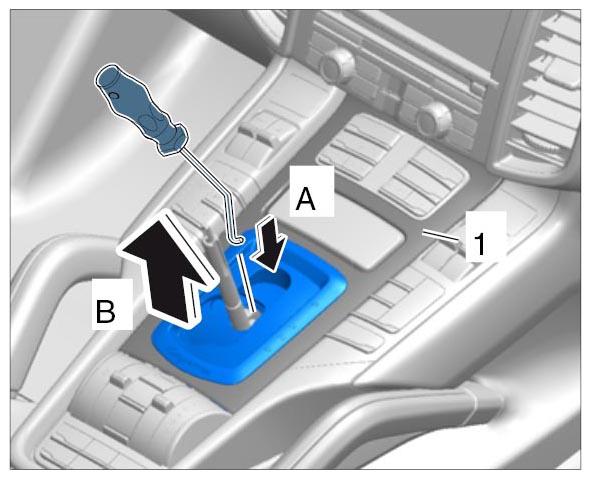

Fig 1: Removing Upper Part Of Centre Console Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
