Removing Lower Part Of Centre Console Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ashtray by pulling it up.
  2. Press lens -1-  for ashtray light to the rear and push it down -arrow-  to remove it.

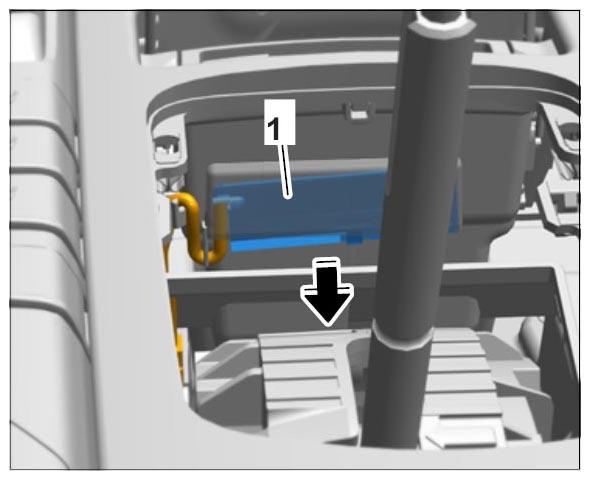

    Fig 1: Removing Lens For Ashtray
    G09940375Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Hold the cover -1-  securely at the front.

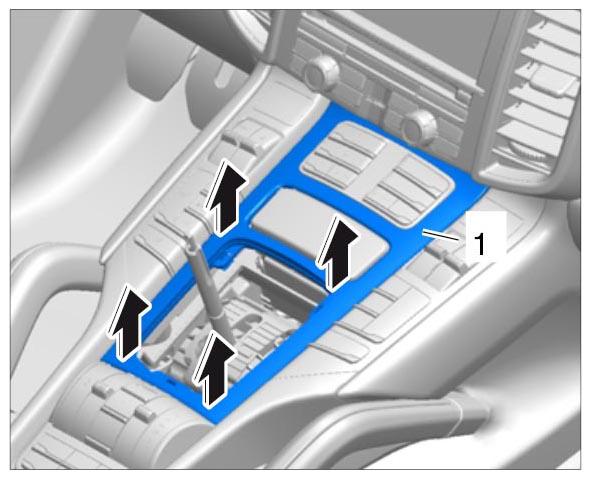

    Fig 2: Removing Lower Part Of Centre Console Cover
    G09940376Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Insert tool assembly tool T10118  at the corners of the cover -1-  and unclip the cover -arrows-  .
  5. Pull the cover up and off.
