Installing Cover For Centre Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Guide cable with LED -1-  for the ashtray light into the lens -2-  and insert the lens.

    Check that the cable is routed correctly.

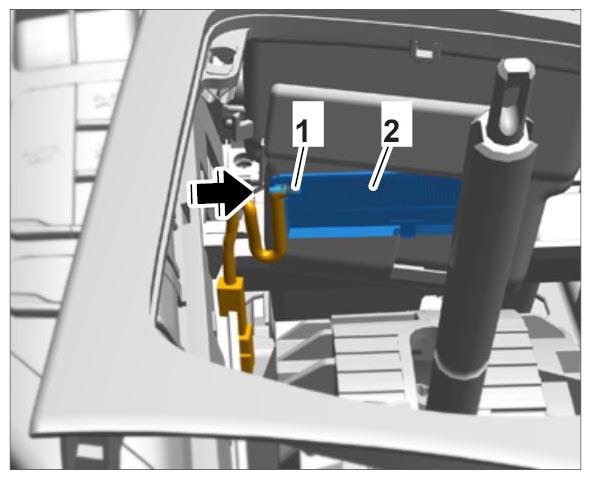

    Fig 1: Installing Lens For Ashtray
    G09940377Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip in lower part of cover.
  3. Position upper part of cover and clip it in.
  4. Check that the covers are seated correctly.
