Removing Centre Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

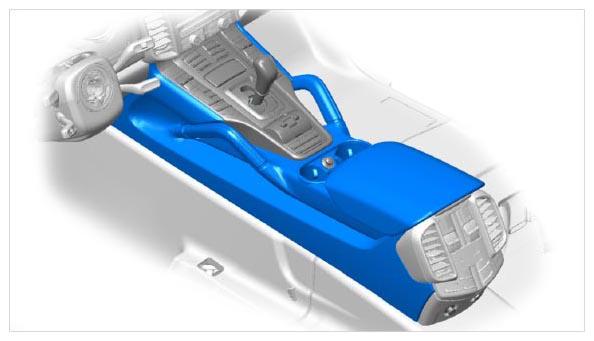

Fig 1: Identifying Centre Console Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

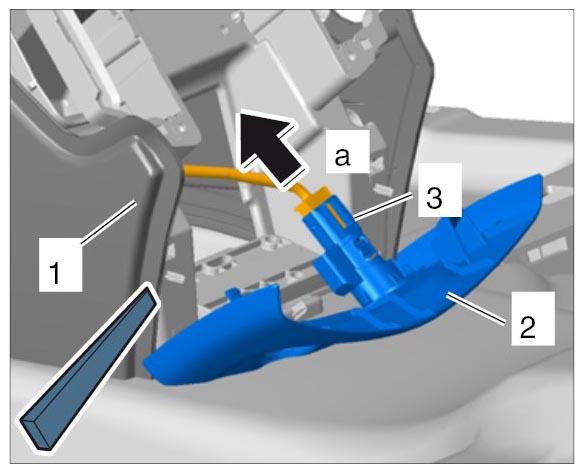

Unclip trim -2- for plug sockets using a suitable tool -wedge- at the sides of the center console -1- .

Fig 2: Removing Centre Console Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection -3- (-a- ) and pull it off -arrow- .

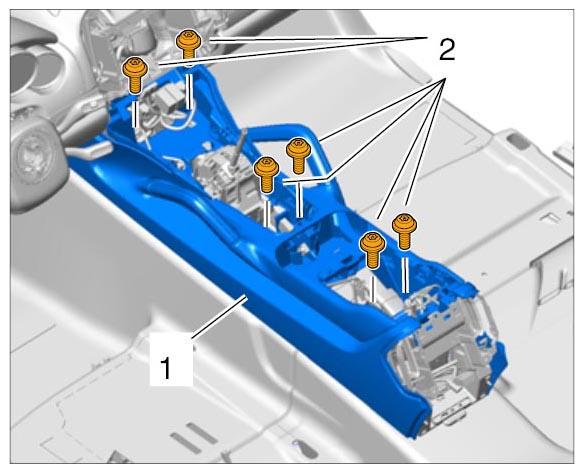

Unscrew fastening screws -2- from the center console -1- .

Fig 3: Identifying Centre Console Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

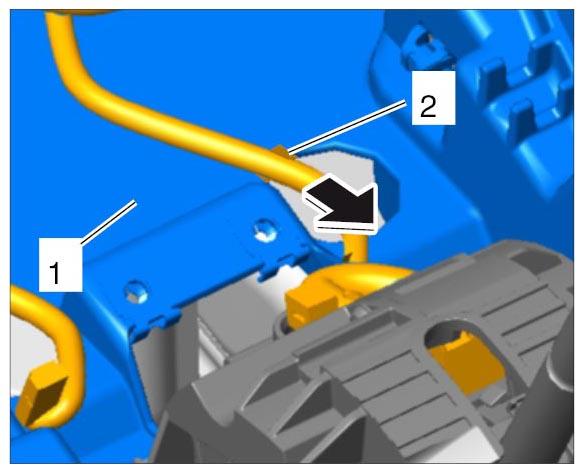

Unclip fixing clip -2- on wire harness for selector support from the center console -1- (-arrow- ).

Fig 4: Removing Clip On Wire Harness For Switch Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

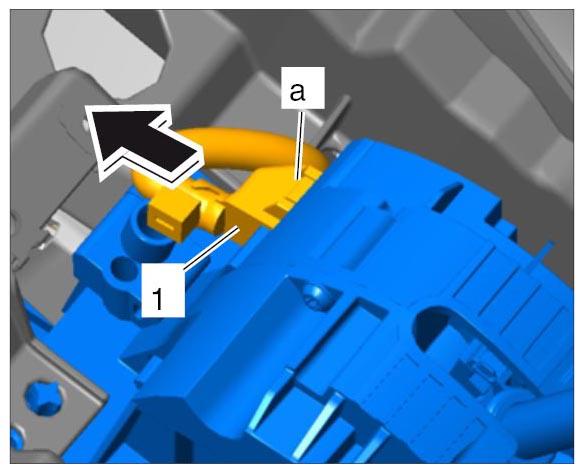

Release electric plug connection -1- from the selector support -a- and pull it off -arrow- .

Fig 5: Removing Plug Connection On Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

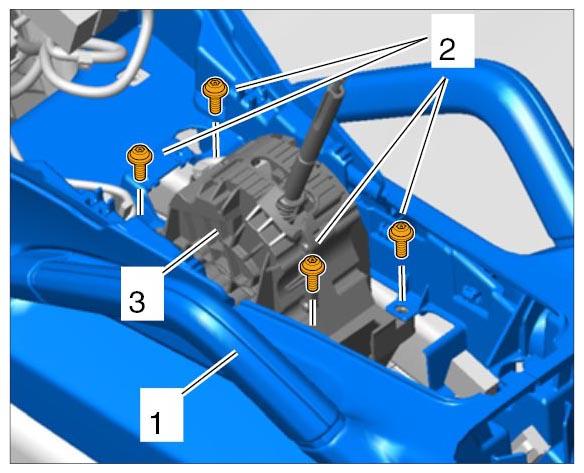

Unscrew fastening screws -2- for the selector support -3- from the center console -1- .

Fig 6: Identifying Screws On Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

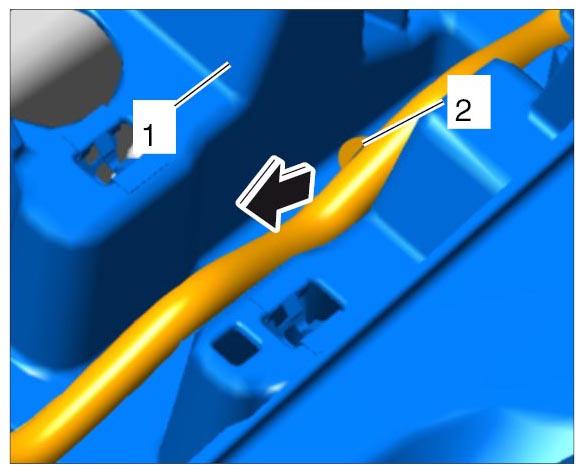

Unclip fixing clip -2- on wire harness for cigarette lighter from the center console -1- (-arrow- ).

Fig 7: Removing Clip On Wire Harness For Cigarette Lighter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

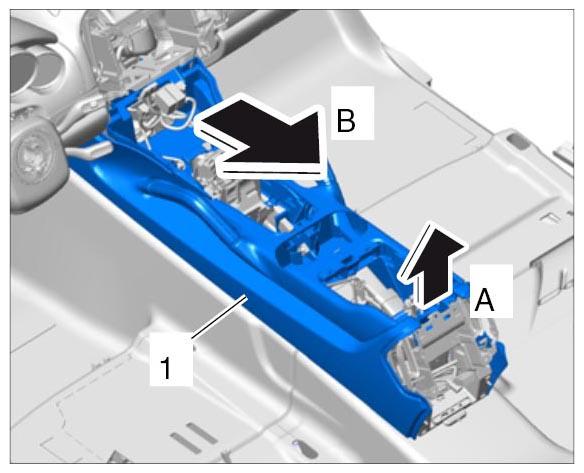

Lift up center console -1- at the rear as far as possible -A- and pull it out to the rear -B- .

Fig 8: Removing Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove center console.
