Installing Centre Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

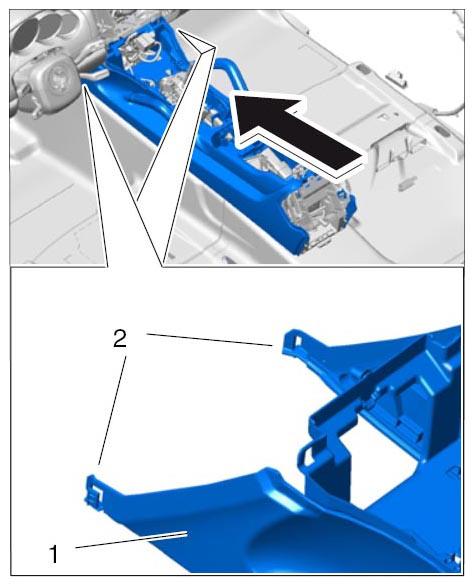

Insert center console -1- under the dashboard -arrow- .
Make sure that the locking lugs on the dashboard trim panel fit into the guides -2- on the center console.

Fig 1: Installing Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

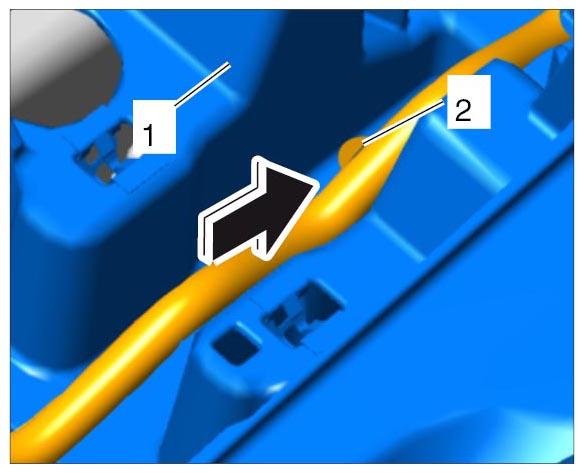

Clip fixing clip -2- for wire harness for cigarette lighter into the center console -1- (-arrow- ).

Fig 2: Clipping Wire Harness For Cigarette Lighter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

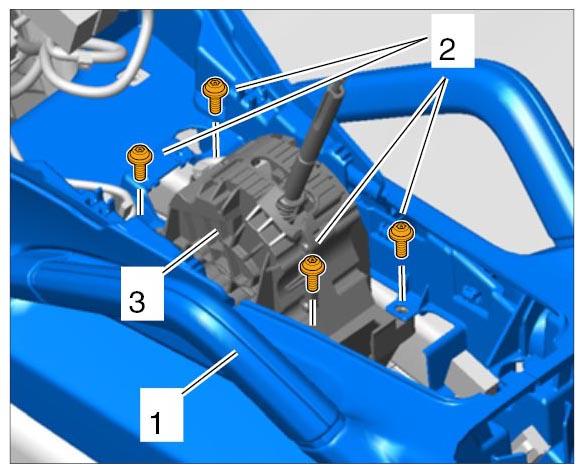

Tighten fastening screws -2- for selector support -3- in center console -1- to → Tightening torque: 10 Nm (7.5 ftlb.) .

Fig 3: Identifying Screws On Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

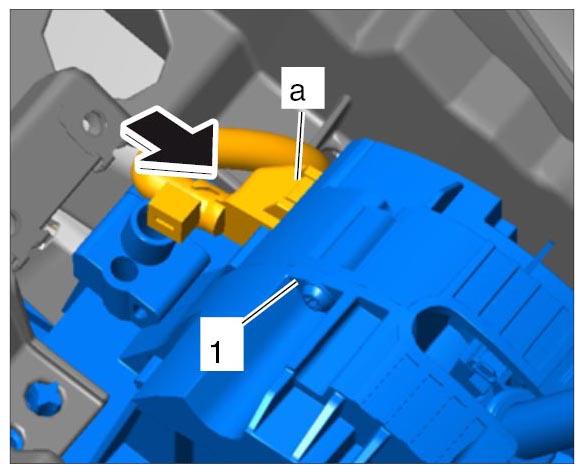

Plug in electric plug connection in selector support -1- (-arrow- ) and lock it -a- .

Fig 4: Removing Plug Connection On Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

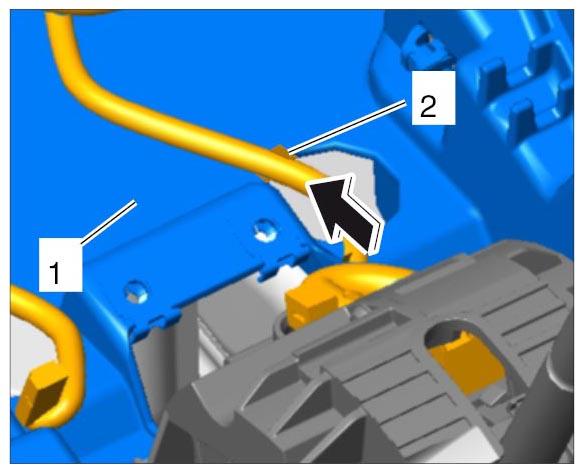

Secure fixing clip -2- on wire harness for selector support to the center console -1- .

Fig 5: Securing Clip On Wire Harness For Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

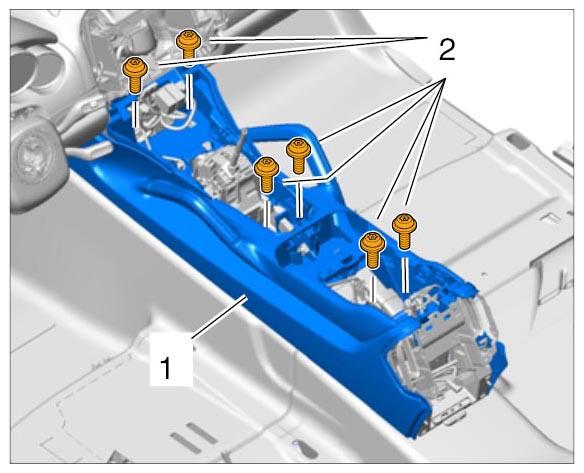

Tighten fastening screws -2- on center console -1- to → Tightening torque: 8 Nm (6 ftlb.) .

Fig 6: Identifying Centre Console Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

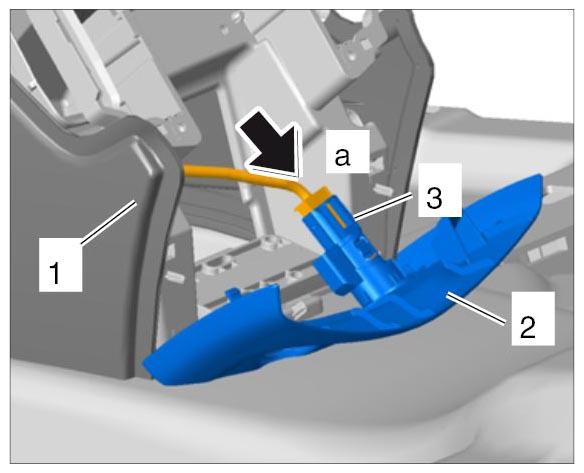

Plug in electric plug connection -3- (-arrow- ) and lock it -a- .

Fig 7: Installing Rear Plug Socket Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip cover -2- for plug sockets into the center console -1- at the side.
