Removing Oddments Tray

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

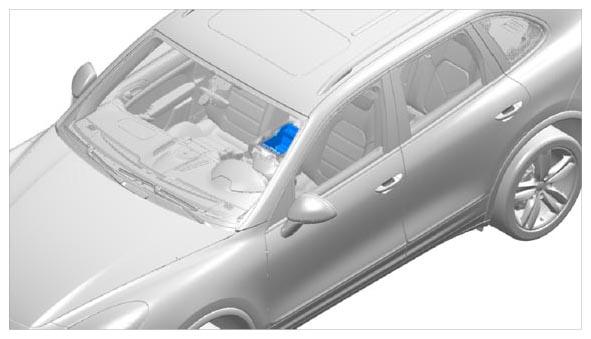

Fig 1: Identifying Oddments Tray Installation Position
G09940354Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Open cover for oddments tray.
  2. Remove rubber mat -2-  from oddments tray -1-  .

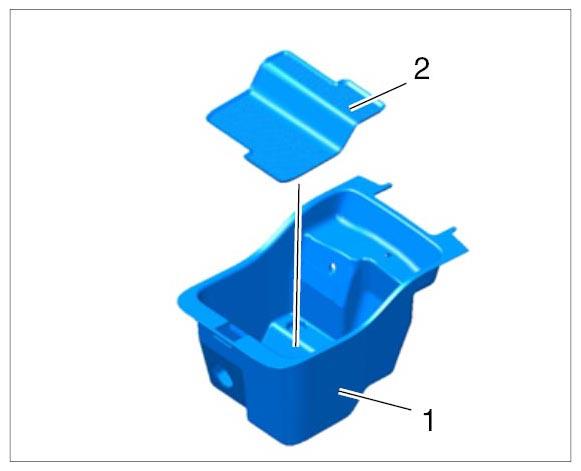

    Fig 2: Identifying Rubber Mat And Oddments Tray
    G09940355Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew screws -2-  from oddments tray -1-  .

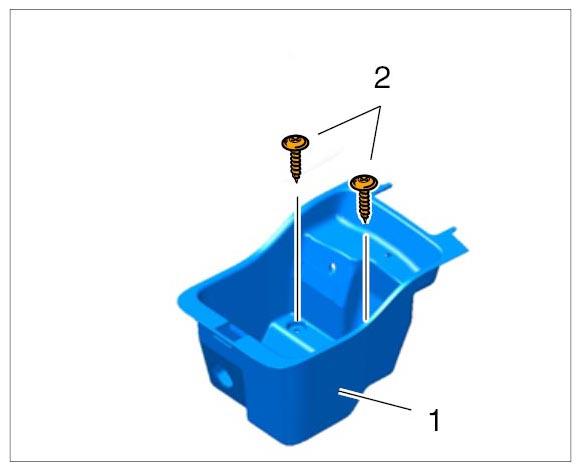

    Fig 3: Removing Screws On Oddments Tray
    G09940356Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Carefully pull oddments tray out of the center console.
  5. Unclip fixing clip for wire harness -1-  from the oddments tray.
  6. Remove tie-wrap -2-  .
  7. Release electric plug connection for plug socket -3-  and disconnect it.
  8. Unscrew screw -4-  and guide out the bracket with electric plug connections for multimedia interface.

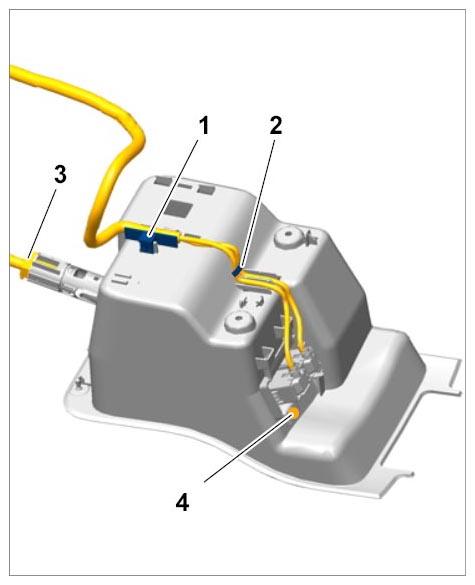

    Fig 4: Identifying Plug Connections For Oddments Tray
    G09940357Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Remove oddments tray.
