Removing Glove Compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Unscrew six fastening screws -1- at the sides, bottom and top.

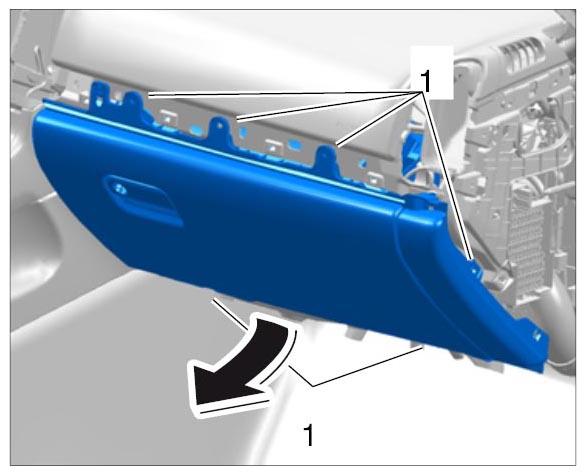

Fig 1: Loosening Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove glove compartment -arrow- .
Pull off hose -2- for glove compartment cooling -A- .
Release electric plug connection -3- for the glove compartment light -a- and disconnect it -B- .

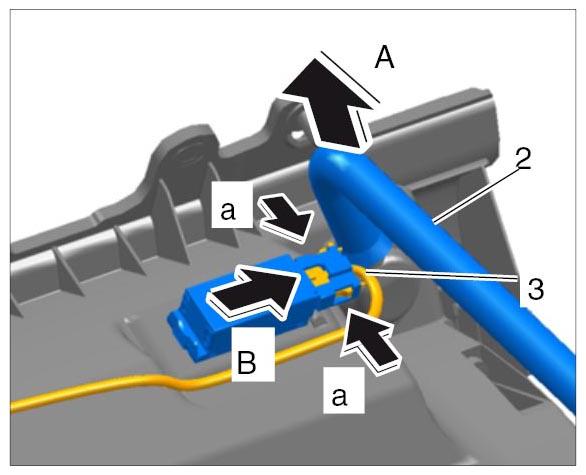

Fig 2: Disconnecting Hose And Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection for glove compartment light switch -A- .

Fig 3: Disconnecting Connector On Light Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection for airbag switch -a- and disconnect it -A- .

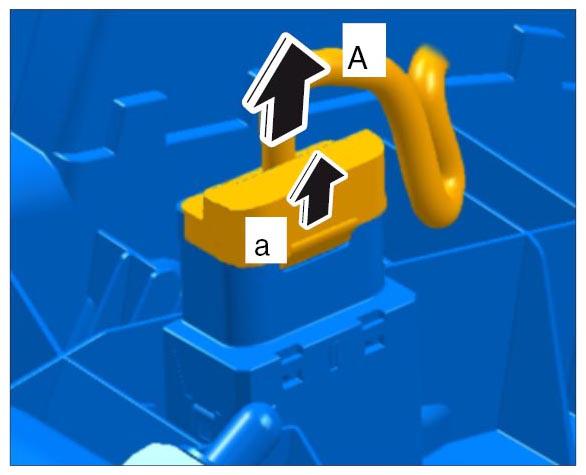

Fig 4: Disconnecting Connector On Airbag Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
