Removing Glove Compartment Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out cotter pin -1-  at insulation for lid -2-  on both sides -arrow-  .

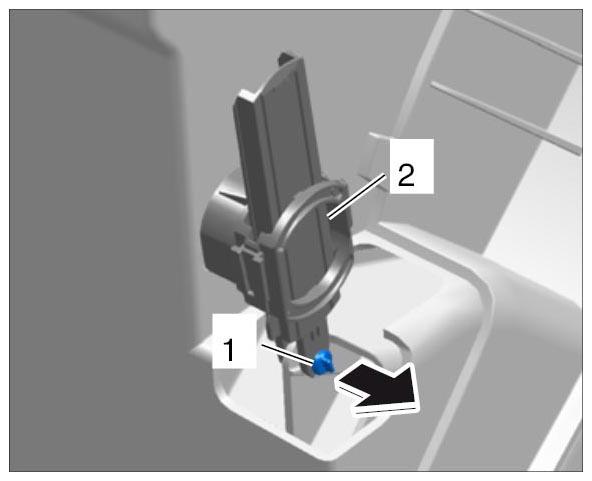

    Fig 1: Removing Cotter Pin At Insulation For Lid
    G09940347Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Drive hinge bolts out towards the center -arrow-  .

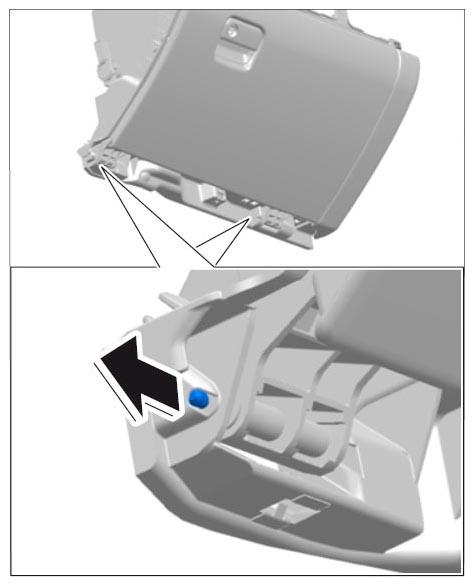

    Fig 2: Pulling Out Hinge Bolts On Glove Compartment Lid
    G09940348Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove glove compartment lid.
