Removing Glove Compartment Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew and remove fastening screws -1-  from the handle -3-  in the glove compartment cover -2-  .

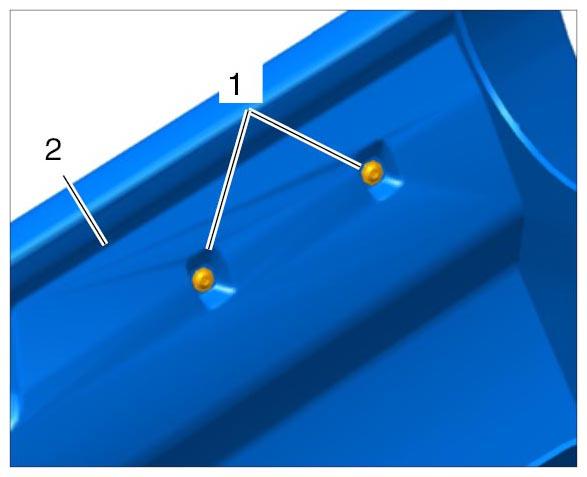

    Fig 1: Identifying Screws For Glove Compartment Cover
    G09940345Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove handle -3-  from glove compartment cover -2-  .
    NOTE: Lock cylinder removed and installed incorrectly
    • Risk of damage to lock cylinder

    → Do not take the ignition key out of the lock cylinder during removal and installation. Otherwise, the spring-loaded locking elements will spring out of the lock cylinder.

  3. Insert ignition key -5-  fully into the lock cylinder. This locks the locking elements in the lock cylinder.

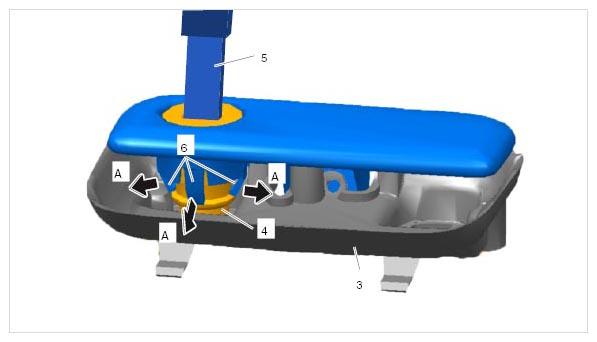

    Fig 2: Removing Lock Cylinder
    G09940346Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press three catches -6-  on the lock cylinder -4-  outwards -A-  .
  5. Pull lock cylinder -4-  with ignition key -5-  out of the handle -3-  .
