Installing Switch For Memory Seat Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

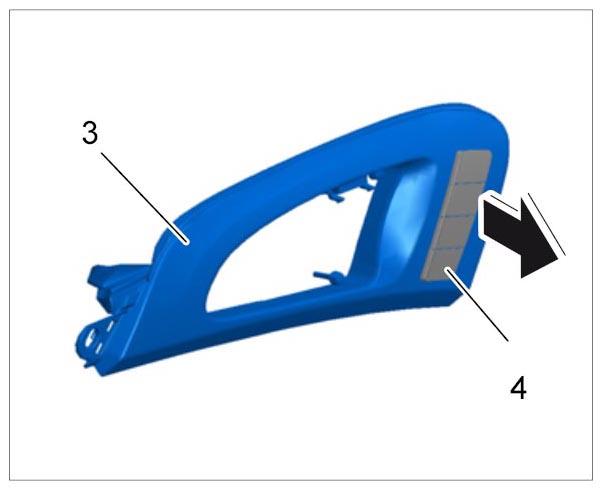

Fit switch for memory seat adjustment -4- into cover for door opener -3- from inside.

Fig 1: Fitting Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

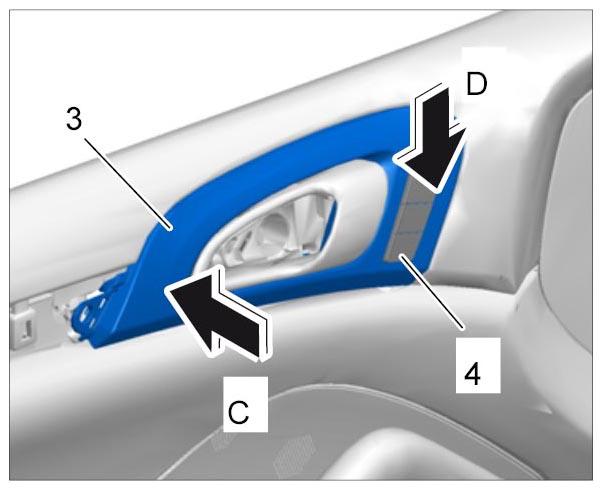

Engage cover for door opener -3- with switch -4- from above -D- and position it in the door panel -C- .

Fig 2: Positioning Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

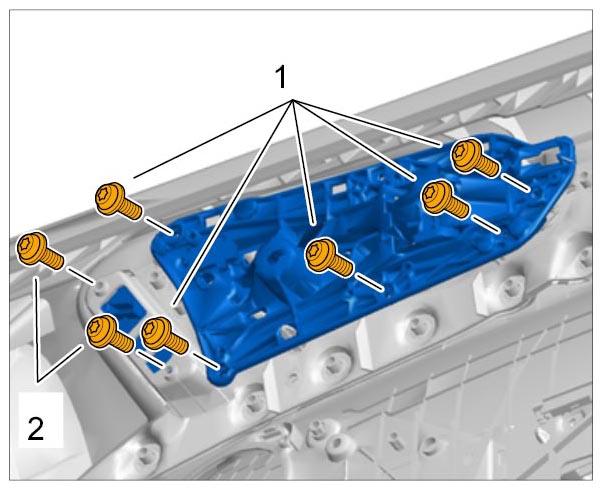

Tighten five fastening screws -1- on cover for door opener.
Tighten two fastening screws -2- on switch for memory seat adjustment.

Fig 3: Identifying Fastening Screws On Cover For Door Opener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

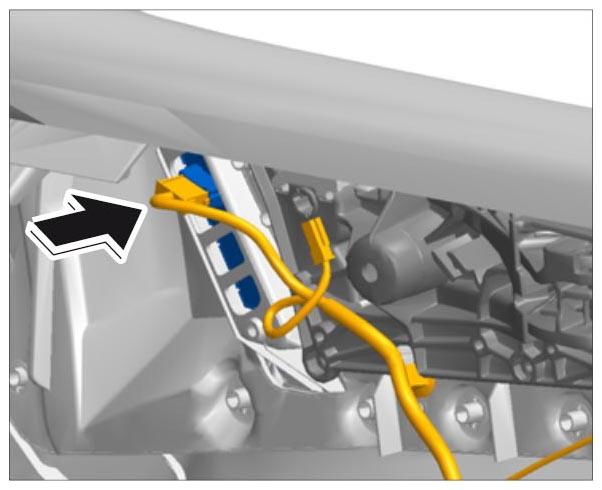

Plug in electric plug connection for switch for memory seat adjustment.

Fig 4: Locating Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
