Removing Motor For Rear Vertical Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

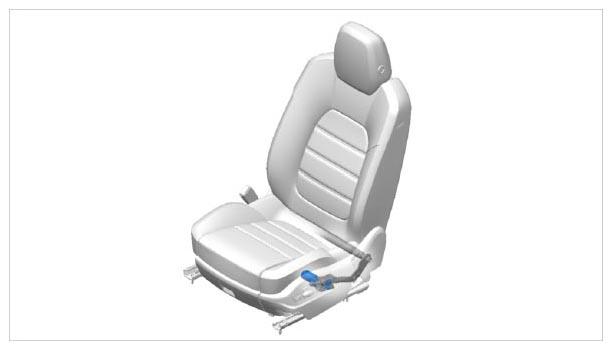

Fig 1: Identifying Installation Position Of Motor For Rear Vertical Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

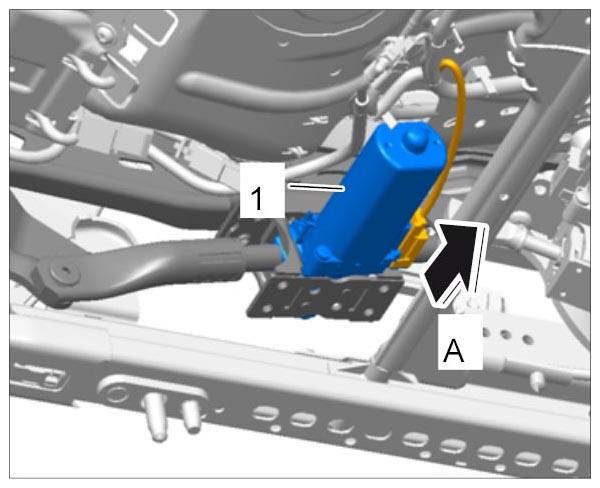

Release electric plug connection on motor for rear vertical adjustment -1- and pull it off -A- .

Fig 2: Unplugging Connector From Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

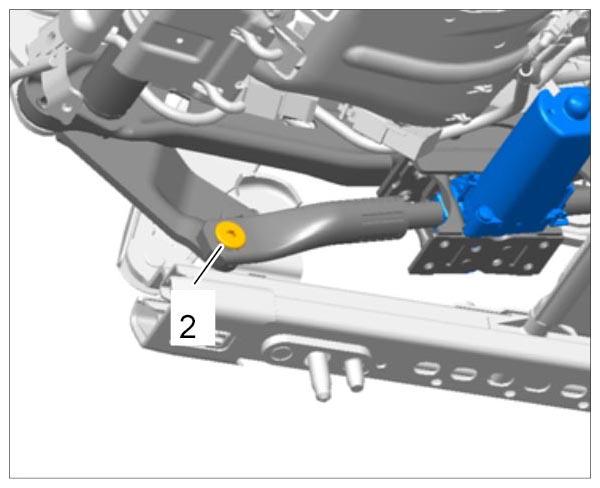

Unscrew fastening screw -2- on the threaded spindle.

Fig 3: Identifying Screw On Threaded Spindle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

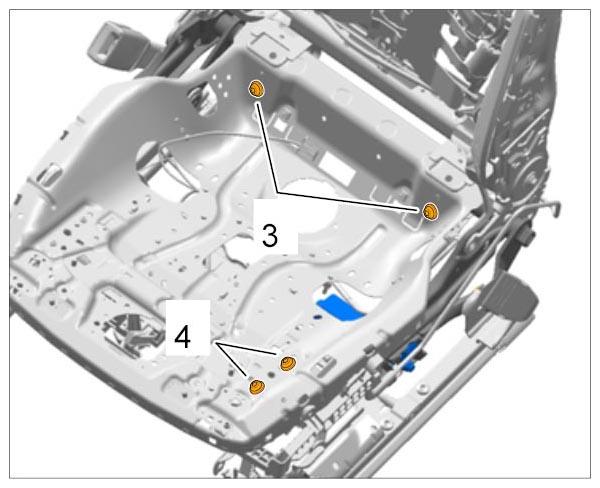

Unscrew two fastening screws -3- on the seat shell at the rear.

Fig 4: Identifying Seat Shell And Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew two fastening screws -4- on the seat shell.

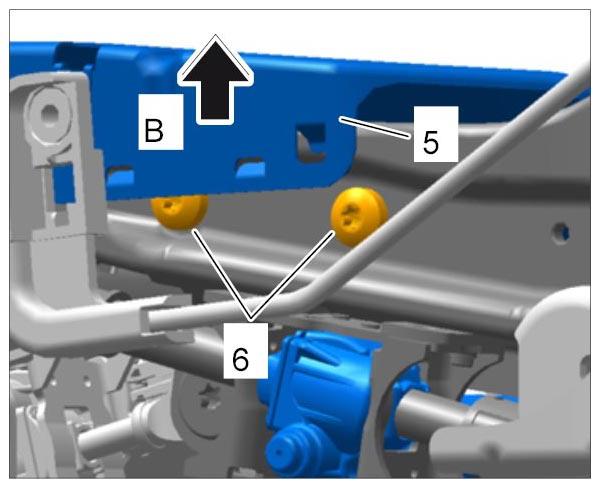

Lift up the seat shell -5- (-B- ).

Fig 5: Removing Motor For Rear Vertical Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew two fastening screws -6- on the bracket for the motor.
