Installing Motor For Rear Vertical Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

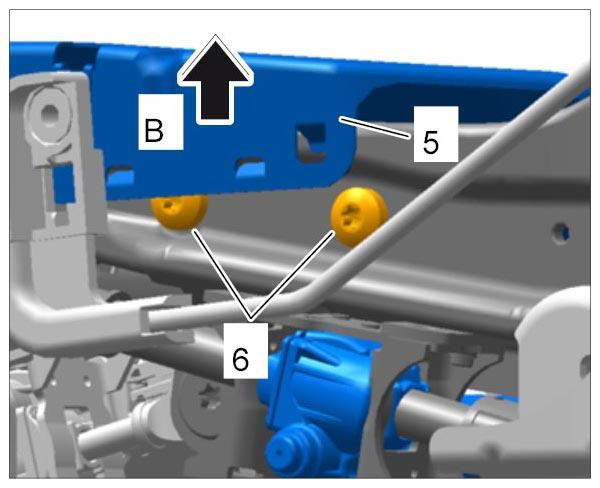

Lift up the seat shell -5- (-B- ).

Fig 1: Installing Motor For Rear Vertical Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in two fastening screws -6- on the bracket for the motor.

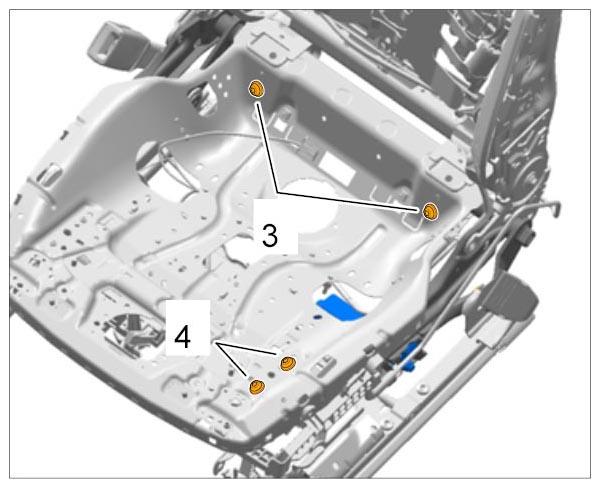

Screw in two fastening screws -3- on the seat shell at the rear.

Fig 2: Identifying Seat Shell And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in two fastening screws -4- on the seat shell.

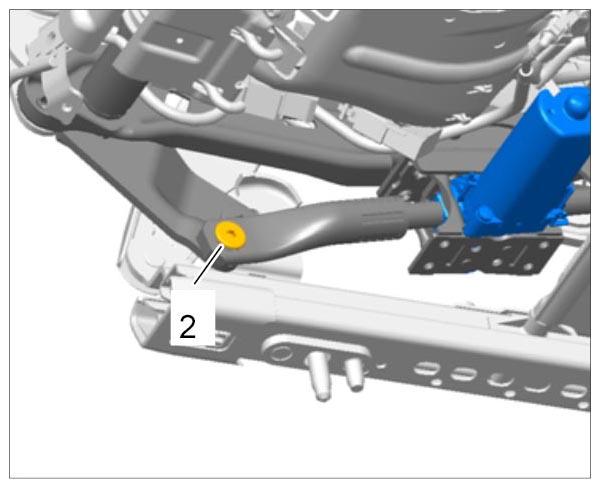

Screw in fastening screw -2- on the threaded spindle.

Fig 3: Identifying Screw On Threaded Spindle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

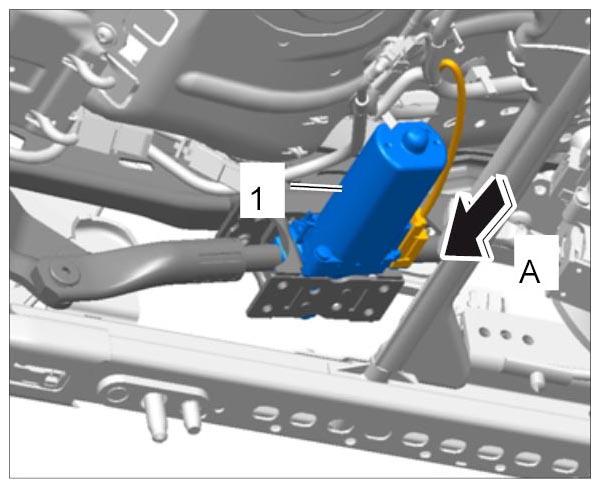

Plug in electric plug connection -1- (-A- ) until the connector engages securely.

Fig 4: Plugging In Connector On Motor For Vertical Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
