Removing Motor For Seat Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

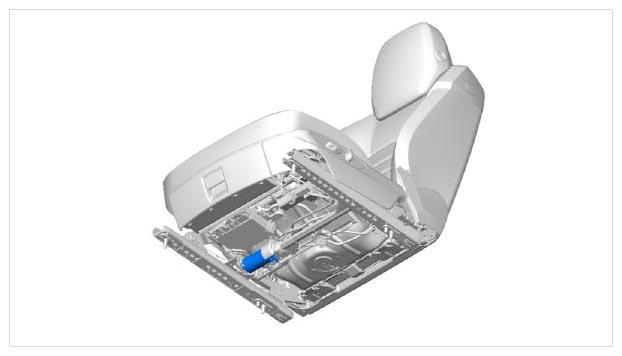

Fig 1: Identifying Installation Position Of Motor For Seat Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

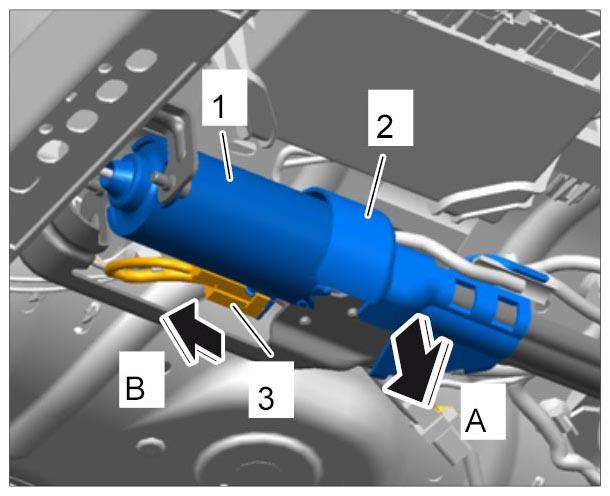

Push out locking mechanism for cover -2- from the rear and unclip cover -2- (-A- ).

Fig 2: Removing Cover For Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

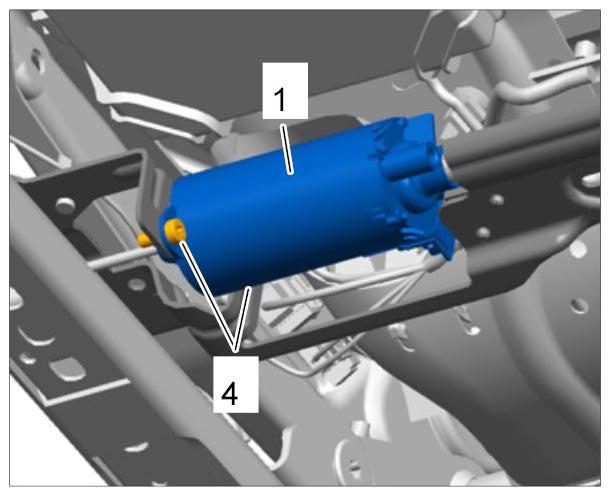

Pull electric plug connection -3- off the motor -B- .
Unscrew two fastening screws -4- .

Fig 3: Identifying Motor And Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

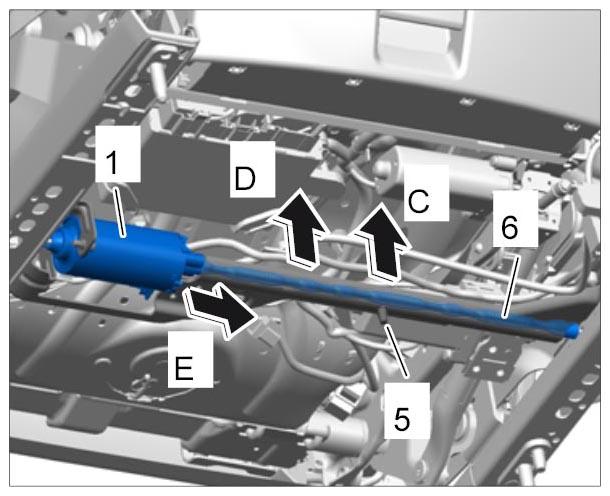

Unclip fixing clip -5- for the long drive shaft -6- (-C- ).

Fig 4: Locating Long Drive Shaft Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully bend the long drive shaft -6- (-D- ) and pull it off the motor -1- (-E- ).

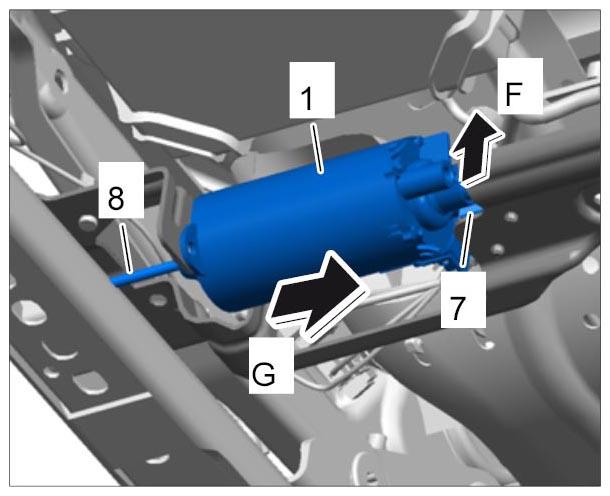

Unclip the motor -1- from the seat frame -7- (-F- ) and pull it off the short drive shaft -8- (-G- ).

Fig 5: Disconnecting Motor From Short Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
