Installing Motor For Seat Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the motor -1-  on the short drive shaft -8-  (-A-  ) and engage it in the seat frame -7-  (-B-  ).

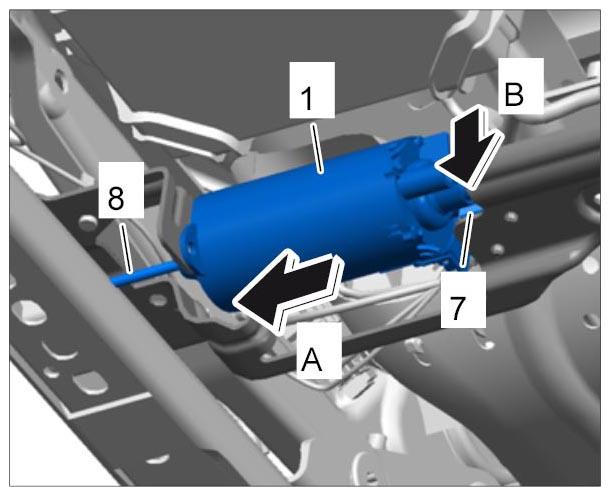

    Fig 1: Fitting Motor On Short Drive Shaft
    G09940970Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully bend the long drive shaft -6-  (-C-  ) and connect it to the motor -1-  (-D-  ).

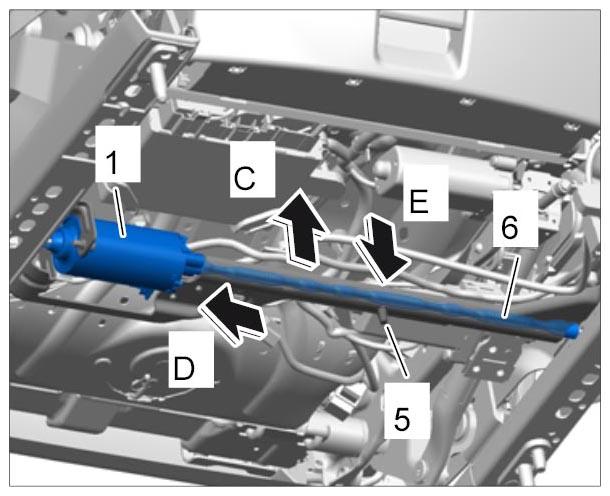

    Fig 2: Connecting Long Drive Shaft To Motor
    G09940971Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip in fixing clip -5-  for the long drive shaft -6-  (-E-  ).
  4. Screw in two fastening screws -4-  .

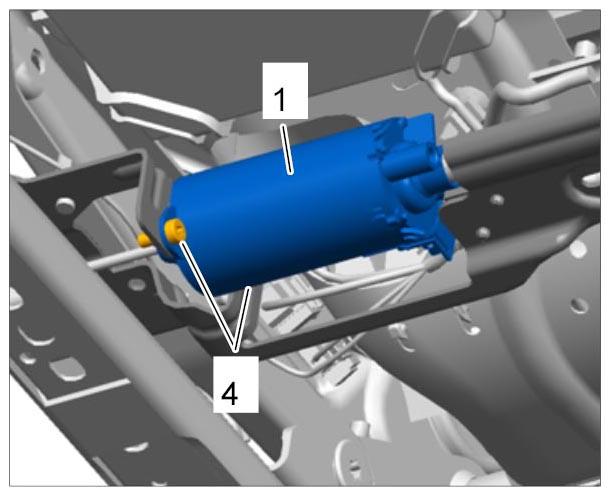

    Fig 3: Identifying Motor And Fastening Screws
    G09940972Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Plug in electric plug connection -3-  on the motor -F-  .

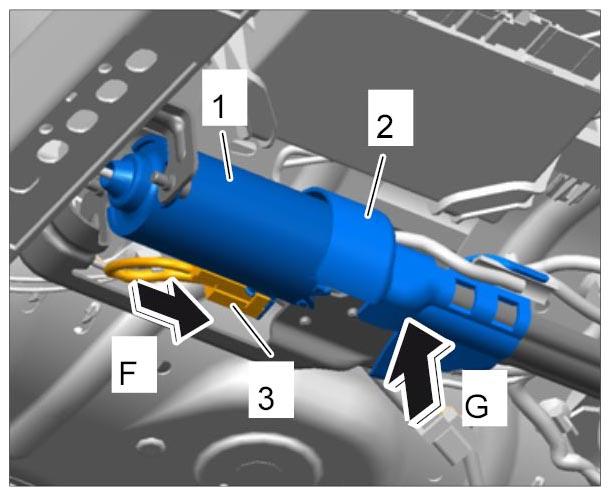

    Fig 4: Installing Cover For Motor
    G09940973Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Clip in cover -2-  for motor -1-  (-G-  ) and lock it.
