Removing Headrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

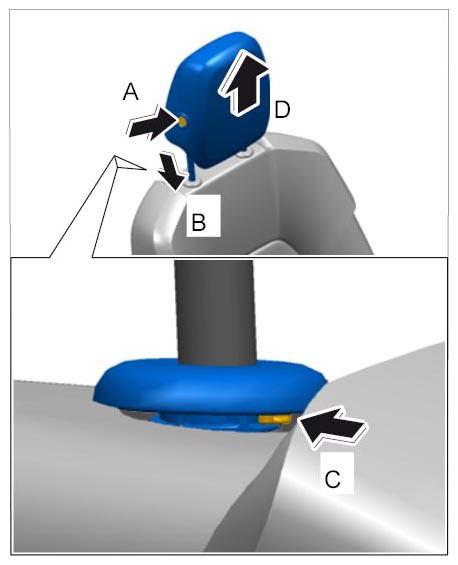

Fig 1: Removing Headrest
G09940960Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press adjusting knob -A-  and pull headrest up as far as it will go.
  2. Press down cushion beside the right headrest guide -B-  .

    Information

    The locking mechanism is on the left-hand side of the vehicle on all outer headrests and must always be pressed towards the right-hand side of the vehicle.

  3. Press locking mechanism inwards with your finger -C-  and pull the headrest up -D-  and out at the same time.
