Removing Lock For 2/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left trim panel on the 2/3-split folding rear seat.
    1. 1.1. Unscrew the fastening screw -1-  on the seat trim -2- at the left.

      Press the control lever up to do this.

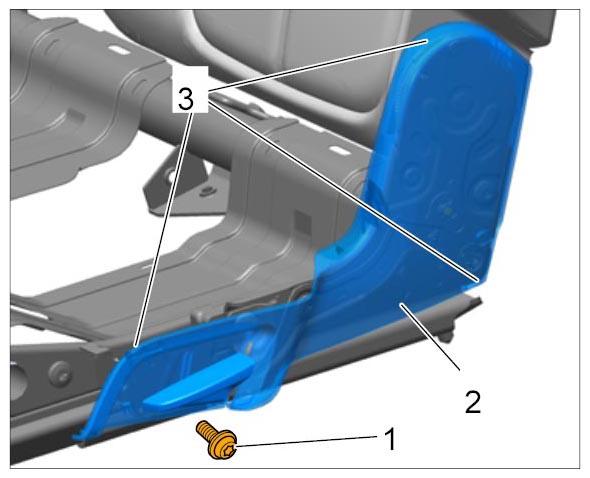

      Fig 1: Identifying Left Trim Panel On 2/3-Split Folding Rear Seat
      G09940954Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 1.2. Carefully unclip the trim panel -2- at the retaining lugs -3-  on the seat.
    3. 1.3. Carefully pull the trim panel up and remove it.
  2. Remove the lever for the locking mechanism.

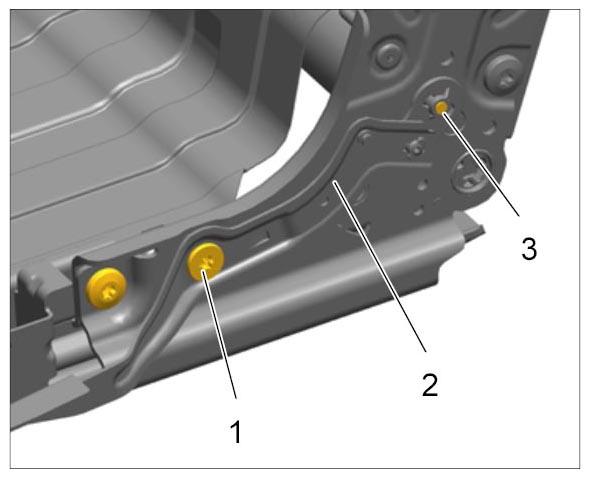

    Fig 2: Identifying Lever For Locking Mechanism And Screws
    G09940955Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Unscrew fastening screw -1-  from the locking mechanism -2-  .
    2. 2.2. Carefully unclip and remove the lever -2-  together with the joint at the locking lug -3-  .
  3. Carefully unclip the locking lug -1-  on the handle -2-  of the locking mechanism using a suitable tool -3-  and remove it from the lever -4-  . Then pull off the handle.

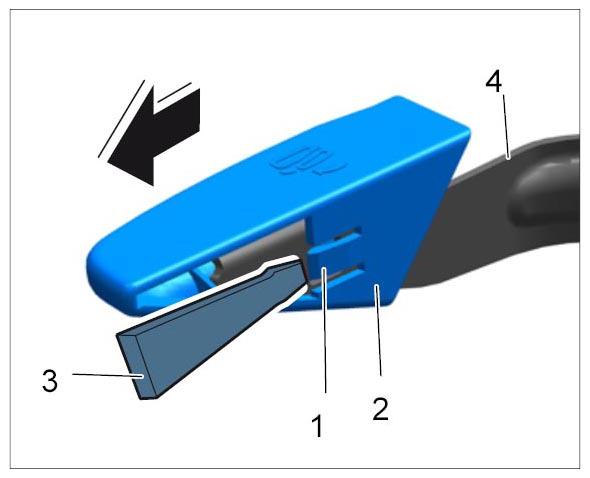

    Fig 3: Removing Handle For Locking Mechanism
    G09940956Courtesy of PORSCHE CARS NORTH AMERICA, INC.
