Installing Lock For 1/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

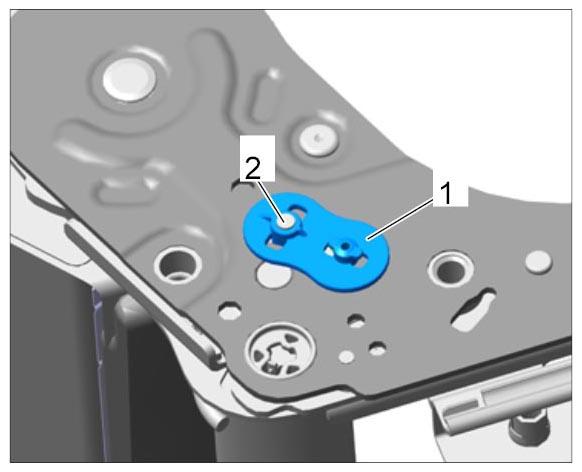

Fit the joint -1- of the locking mechanism onto the pin -2- and check that it engages securely.

Fig 1: Identifying Locking Mechanism Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

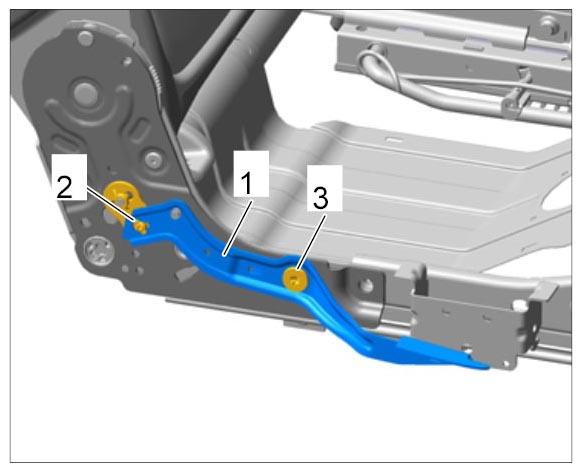

Install the lever for the locking mechanism.

Fig 2: Identifying Lever For Locking Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Carefully clip the lever -1- for the locking mechanism onto the locking lug -2- on the locking mechanism joint.
2. 2.2. Screw in fastening screw -3- for the locking mechanism and tighten to → Tightening torque: 20 Nm (15 ftlb.)+/-2 Nm (+/-1.5 ftlb) .

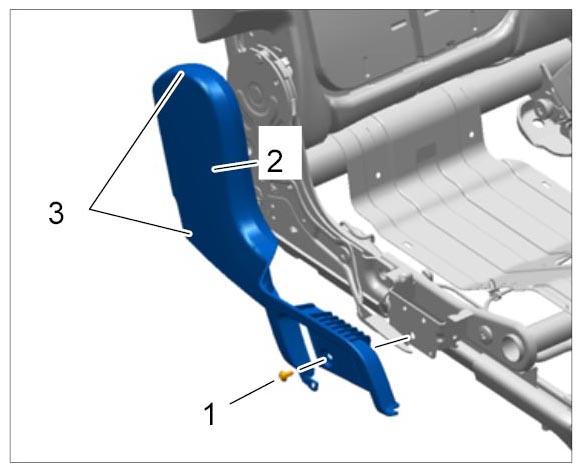

Install right trim panel on 1/3-split folding seat.

Fig 3: Right Trim Panel On 1/3-Split Folding Rear Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Guide the trim panel -2- into position on the seat from above and engage it securely at the clips -3- .
2. 3.2. Screw in fastening screw -1- and tighten to → Tightening torque: 2 Nm (1.5 ftlb.).

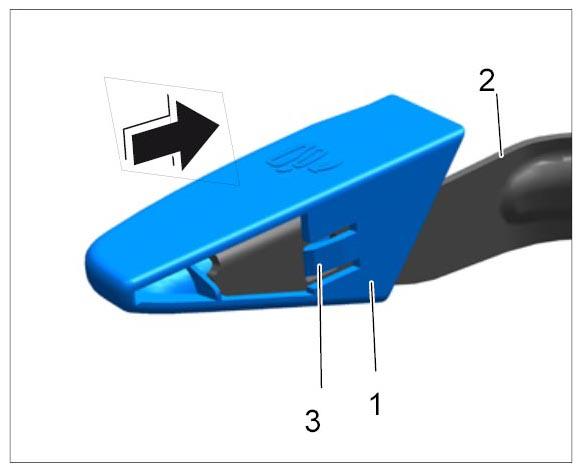

Slide the handle -1- of the locking mechanism onto the lever -2- until the locking lug engages securely -3- .

Fig 4: Installing Handle Of Locking Mechanism For 1/3-Split Folding Rear Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
