Replacing 2/3-Split Folding Rear Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove load-through provision. → 745619 REMOVING AND INSTALLING LOAD-THROUGH PROVISION
  2. Remove lock for 2/3-split folding rear backrest. → 726319 REMOVING AND INSTALLING LOCK FOR 2/3-SPLIT FOLDING REAR BACKREST
  3. Remove padding for 2/3-split folding backrest. → 745219 REMOVING AND INSTALLING PADDING FOR 2/3-SPLIT FOLDING BACKREST
  4. Remove rear seat belt at the center. → 691219 REMOVING AND INSTALLING REAR THREE-POINT SEAT BELT
  5. Remove side airbag for 2/3-split folding rear seat. → 696419 REMOVING AND INSTALLING REAR SIDE AIRBAG
  6. Using a suitable tool, carefully unclip fixing clips -1-  for the trim panel on the lashing points -2-  from the backrest -3-  from the front.

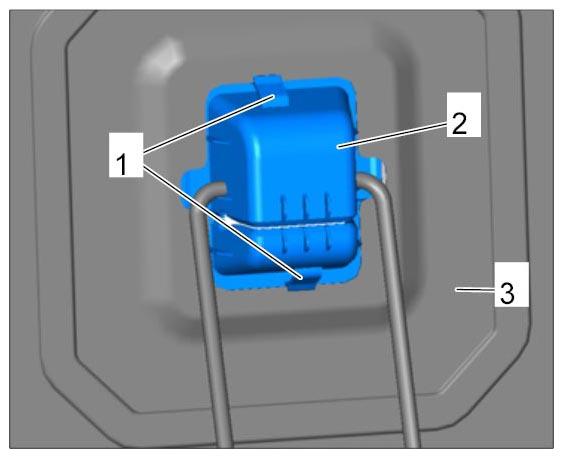

    Fig 1: Identifying Trim Panel On Lashing Point
    G09940932Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Pull the trim panel out to the rear -2-  .
  8. Carefully unclip the trim panel -1-  on the top lashing point from behind using a suitable tool -2-  and pull it out of the backrest -3-  .

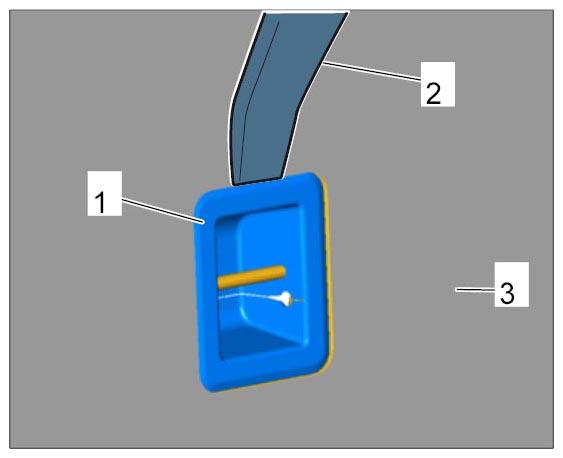

    Fig 2: Identifying Trim Panel On Top Lashing Point
    G09940933Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Remove headrest guide.

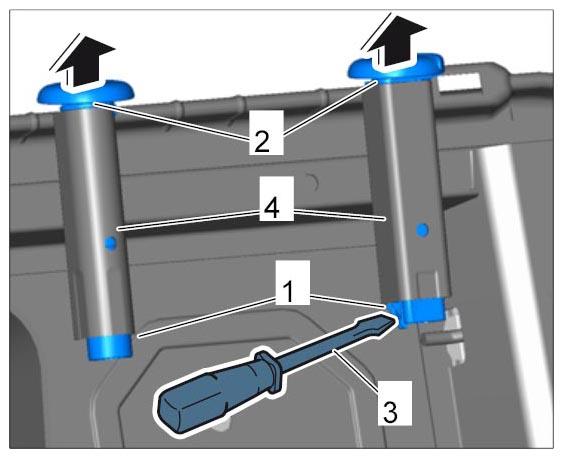

    Fig 3: Removing Headrest Guide
    G09940934Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 9.1. Carefully press in the retaining lugs -1-  on the headrest guide -2-  using a suitable tool -3-  .
    2. 9.2. Pull the headrest guide -2-  up out of the brackets -4-  (-arrows-  ).
  10. Replace backrest frame.
  11. Install headrest guide -1-  .

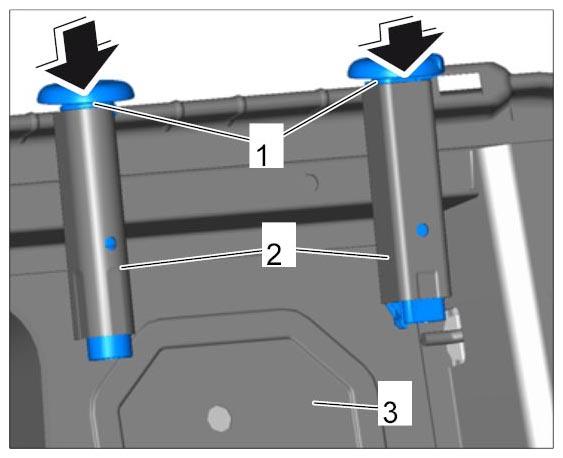

    Fig 4: Installing Headrest Guide
    G09940935Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 11.1. Slide the guide -1-  for the headrest into the holder -2-  on the backrest -3-  from above -arrows-  .
  12. Clip the trim panel for the top lashing point at the side into the rear cover on the backrest. → Trim panel on top lashing point
  13. Clip the trim panel for the center lashing point into the rear cover on the backrest. → Trim panel on lashing point
  14. Install the side airbag. → Installing Rear Side Airbag
  15. Install rear seat belt at the center. → Installing Rear Three-Point Belt
  16. Install padding for 2/3-split folding backrest. → Installing Padding For 2/3-Split Folding Backrest
  17. Install lock for 2/3-split folding rear backrest. → 726319 REMOVING AND INSTALLING LOCK FOR 2/3-SPLIT FOLDING REAR BACKREST
  18. Install load-through provision. → 745619 REMOVING AND INSTALLING LOAD-THROUGH PROVISION
